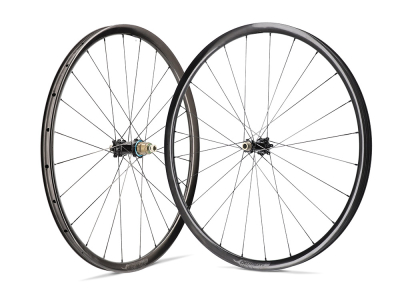

EXTRALITE Wheelset 28" Gravel | HyperGravel SL with Stainless Steel Spokes | SRAM XDR

Description

EXTRALITE Wheelset 28" Gravel | HyperGravel SL with Stainless Steel Spokes | SRAM XDR

The HyperGravel SL from Extralite is a gravel wheelset in a class of its own! Specifically designed for use on gravel, the 960g lightweight wheels offer impressive acceleration and are perfect for the steepest ramps in the route profile. The weight-optimized rims with a low profile are made of special high-performance fibres from Toray. The leading manufacturer of high-quality carbon fibers forms the basis for many exciting lightweights on the market. Extremely light Hi-Grade T1100 Fiber is used, which is characterized by its exceptional resilience and stability. In addition, each spoke hole is individually reinforced to withstand the high loads. The asymmetrical arrangement of the spoke holes achieves a more even spoke tension, which increases the reliability of the wheelset and minimizes maintenance. The wheelset is ideal for tubeless use in order to take full advantage of the improved puncture protection and rolling resistance properties of modern tubeless tires.

HyperSmart 3 Hubs
The ultra-light Extralite HyperSmart 3 hubs are an Italian masterpiece. The one-piece hub body is precisely manufactured from high-strength 7075TX aluminum using state-of-the-art CNC technology. 7075TX is a variant of the 7075 aluminum alloy, which is mainly used in the aerospace industry due to its particular hardness and resistance. The alloy offers a perfect combination of low weight and high strength, making it ideal for critical applications where high structural integrity is required. At the center of the hub, double-sealed stainless steel bearings rotate on a 17 millimeter thick aluminum axle. The axial play can be precisely fine-tuned via a micro-tuner to prevent unwanted movements and vibrations. Thanks to the straightpull design, the spokes are bolted directly into the hub instead of being guided through traditional storage holes. This ensures a considerable reduction in weight, increases the load capacity of the wheels and gives them a modern appearance. Propulsion is provided by a ratchet system. Instead of pawls that engage in a sprocket, the system consists of two toothed discs that slide over each other. When pedaling, the 36 teeth of the two discs engage with each other and transfer the power to the rear wheel.

Stainless Steel Spokes
There are many reasons why wheel specialists rely on stainless steel spokes, especially for performance-oriented wheels. In addition to its high tensile strength and low elongation, stainless steel scores points for its excellent corrosion resistance and is also lighter than steel.

All Extralite wheels are handcrafted in Italy with high precision and creative passion and stand for outstanding performance, exceptional lightness and a quality of workmanship that is second to none.

Technical data:

Area of application: Gravel
Wheel size: 28" (ETRTO: 622 x 24)
Rim type: clincher and folding tires
Brake type: disc brake
Brake disk mount: 6-hole
Material hubs: 7075TX aluminum
Rim material: Toray Hi-Grade 7110 fiber
Spokes material: stainless steel
Inner width: 24 mm
Outer width: 29.3 mm
Rim height: 25 mm
Number of holes: 24
Profile offset: 2 mm
Spokes: HyperLite aero stainless steel spokes, straight pull, Pillar Ergal DSN nipples
Spoking pattern front: disc side double crossed, non-disc side radial
Rear spoke pattern: drive side double crossed, non-drive side radial
Axle standard front: 12x100 mm thru axle
Rear axle standard: 12x142 mm thru axle
Front bearing: 2x stainless steel deep groove ball bearings
Rear bearing: 4x stainless steel deep groove ball bearings
Seal: double sealed
Freehub type: ratchet system, 36 teeth
Freehub compatibility: SRAM XDR
recommended tire width: 30-50 mm
maximum air pressure: 30 mm = 3,5 bar (51 psi), 35 mm = 3 bar (43 psi), 40 mm = 2,5 bar (36 psi), 45 mm = 2 bar (29 psi), 50 mm = 1,6 bar (23 psi)
maximum system weight: 90 kg
tubeless compatible: yes
valve hole: Presta valve (SV)
Color & finish rims: black, matt UD finish
Decals rims: glazed black graphics with glossy lettering
Color & finish hubs: glossy black
Decals hubs: glazed matt white lettering

Weight according to manufacturer: 960g
Weight self-weighed: 960g

Scope of delivery:

1x EXTRALITE front wheel 28" CyberDisc 340C with stainless steel spokes
1x EXTRALITE rear wheel 28" CyberDisc 340C with stainless steel spokes | SRAM XDR
1x EXTRALITE Alugrease Super1 for freewheels | 5g
2x spare spokes

more  always opened

Manufacturer information

Studio Riva SRL

Strada dei Boschi 8

26813 Graffignana

Italien

https://www.extralite.com/

SKU:	68984-002
Item weight:	960g
