Description
EXTRALITE Screw Set Extrabolt 4.5 | M6x15 titanium black for caliper
CNC machined and optimized to the smallest detail, super light titanium bolts for all areas of the bike. The thread of the screws is laboriously rolled for higher strength and not cut or milled. Also suitable for the safety-relevant assembly of calipers. The black color is achieved by an extremely resistant PVD coating.
Technical specifications:
Material: Titanium GRD5
Head shape: conical, specially milled
Head diameter: 10 mm (with washer 10.8 mm)
Head height: 5.0 mm (with washer 5.8 mm)
Thread: M6
Length of thread: 8.0 mm
Length shaft: 16 mm (with washer 15.2 mm)
Total length: 21 mm
Max. Torque: 7-8 Nm
Tool holder: Torx 30
Colors: black
Weight according to manufacturer: 9,6g (set)

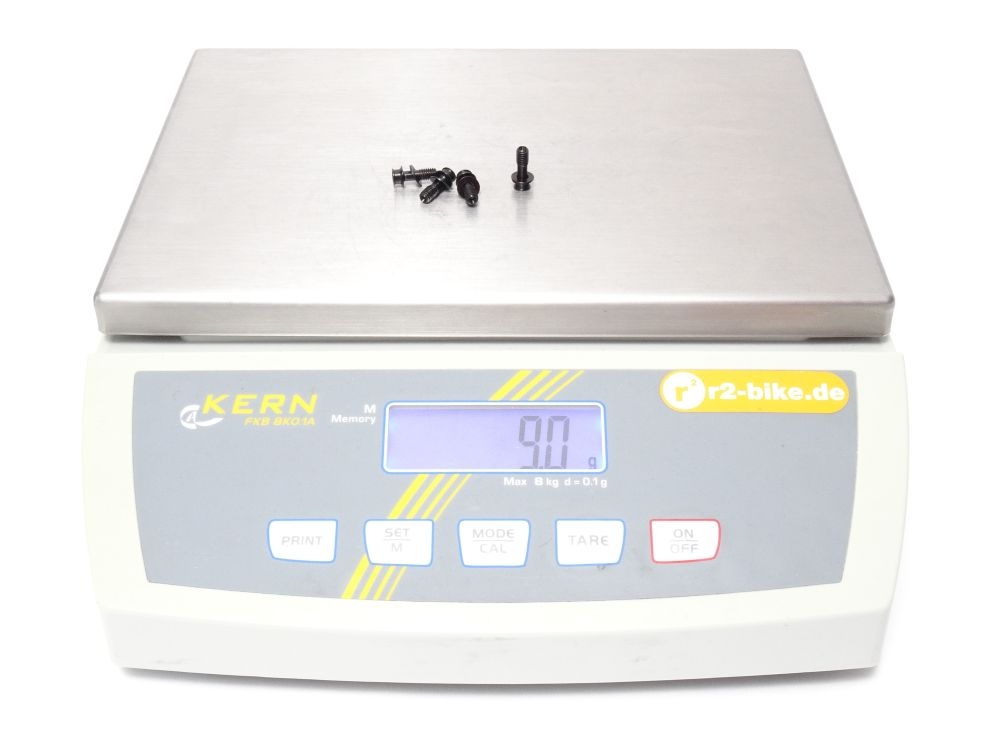

Weight weighed: 2.2g (piece), 9.0g (set)
Delivery:
4x EXTRALITE screws extra bolt 4.5 | M6x15 titanium black
4x EXTRALITE washers titanium black
Manuals / Downloads
Assembly Instructions
