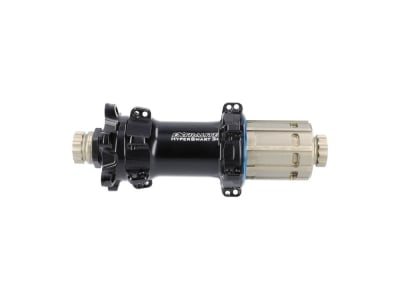

EXTRALITE Rear Hub HyperSmart 3+ R | HyperCeramic | 48 teeth | Thru Axle 12x142 mm | Shimano Road
The ultra-light Extralite HyperSmart 3+ is an Italian masterpiece. The one-piece hub body is precisely manufactured from high-strength 7075TX aluminum using state-of-the-art CNC technology. 7075TX is a variant of the 7075 aluminum alloy, which is mainly used in the aerospace industry due to its particular hardness and resistance. The alloy offers a perfect combination of low weight and high strength, making it ideal for critical applications where high structural integrity is required. At the center of the hub, double-sealed stainless steel bearings rotate on a 17 millimeter thick aluminum axle. The axial play can be precisely fine-tuned via a micro-tuner to prevent unwanted movements and vibrations.
The plus in the name stands for the revised spoke holder in straight-pull design. 3D angled holes with seamless, smoothly rounded transitions enable a direct fit for various spoke types, including Berd and carbon spokes as well as conventional steel and stainless steel spokes. Optimized spoke curvature, improved tension distribution and perfect alignment of the spokes to the rim ensure maximum efficiency and stability. A toothed disk system ensures propulsion. Instead of pawls that engage in a sprocket, the system consists of two toothed discs that slide over each other. When pedaling, the 48 teeth of the two discs engage with each other and transfer the power to the rear wheel.
HyperCeramic
These Extralite hubs are factory-fitted with double-sealed hybrid ceramic bearings for demanding racing and long-distance use. The combination of ultra-hard ceramic balls and robust stainless steel races gives the advanced precision bearings smooth running, minimal friction and exceptional resistance to corrosion and wear. Thanks to high temperature resistance, the efficient running performance remains constant even under high loads and on long descents. A noticeable advantage for all those who rely on maximum performance and durability.
Weighing in at 152 grams, the Extralite HyperSmart 3+ is one of the lightest rear hubs money can currently buy. Elaborate computer simulations, countless prototypes and a long test phase under the toughest conditions guarantee its exceptional durability. All Extralite hubs are manufactured in Italy with high precision and creative passion and stand for outstanding performance, exceptional lightness and a quality of workmanship that is second to none.
We will be happy to provide you with a quote for a complete custom wheelset with rims and spokes of your choice. Please send us an e-mail to [email protected]!
Technical data:
Area of application: Gravel, Cross Country
Material: Aluminum 7075TX
Axle standard: 12x142 mm thru axle
Number of holes: 24, 28
Brake rotor mount: 6-hole (IS2000)
Axle diameter: 17 mm
Bearing freehub: 2x 6803 2RS deep groove ball bearings, HyperCeramic hybrid ceramic bearings
Bearing hub shell: 1x 6803 2RS (disc side), 1x 6903 2RS deep groove ball bearing (center), HyperCeramic hybrid ceramic bearings
Freehub type: Toothed pulley system, 48 teeth (free travel of max. 7.5°)
Freewheel body: Shimano Road
Freewheel bearing: 2x 6803 2RS deep groove ball bearings, HyperCeramic hybrid ceramic bearings
Bearing hub shell: 1x 6803 2RS (disc side), 1x 6903 2RS deep groove ball bearing (center), HyperCeramic hybrid ceramic bearings
Seal: Labyrinth rubber seals, O-ring seal
Spoke type: Straightpull
Spoke tension max.: n/a (Disc Side), 1275N (Drive Side)
Maximum system weight: n/a
Finish: glossy
Color: black
Weight according to manufacturer: 144g
Weight self-weighed: 152g
Scope of delivery:
1x EXTRALITE Rear Hub HyperSmart 3+ R | HyperCeramic | 48 teeth | Thru Axle 12x142 mm | Shimano Road
1x EXTRALITE Alugrease Super1 for freewheels | 5g
