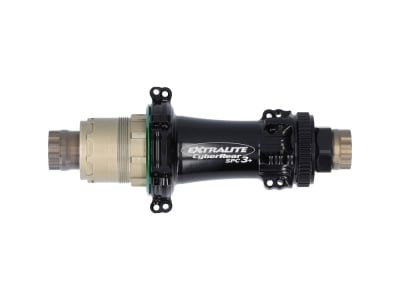

EXTRALITE Rear Hub CyberRear SPC 3+ Road Center Lock | HyperCeramic | 12x142 mm Thru Axle | SRAM XDR
It has long been known that the Italians around Extralite create small CNC works of art. Their extravagant design stands out from the crowd and is an eye-catcher on any bike.
With the next evolutionary stage of the Cyberhubs, they have once again outdone themselves. The one-piece hub body is CNC-milled from high-strength 7075TX aluminum at great expense. This rotates around a stable 17 mm aluminum axle with double-sealed hybrid ceramic bearings. The axial play can also be finely adjusted in future using the micro-tuner.
The spoke mounts have been changed slightly. These are now closer to the hub body, but still use the straight-pull version to minimize susceptibility to punctures. The holes have been enlarged and rounded to a diameter of 2,8 mm and can accommodate conventional stainless steel spokes as well as carbon or even textile fiber versions. This means you are already equipped for the future. In addition, the coordinated geometry of the hub flange ensures an optimum spoke angle and can also withstand high spoke tensions. This guarantees you a very stiff and durable wheel.
A pawl freewheel provides propulsion. Two pawls engage in a titanium ring with 32 ratchets. This reduces the free travel and at the same time reduces wear. All these features, together with the excellent workmanship, result in a 141 gram lightweight hub that will amaze the technology-loving road cyclist.
HyperCeramic
These Extralite hubs are factory-fitted with double-sealed hybrid ceramic bearings for demanding racing and long-distance use. The combination of ultra-hard ceramic balls and robust stainless steel races gives the advanced precision bearings smooth running, minimal friction and exceptional resistance to corrosion and wear. Thanks to high temperature resistance, the efficient running performance remains constant even under high loads and on long descents. A noticeable advantage for all those who rely on maximum performance and durability.
With a weight of 143 grams, the Extralite CyberRear SPC 3+ is one of the lightest rear hubs money can currently buy. Elaborate computer simulations, countless prototypes and a long test phase under the toughest conditions guarantee its exceptional durability. All Extralite hubs are manufactured in Italy with high precision and creative passion and stand for outstanding performance, exceptional lightness and a quality of workmanship that is second to none.
We will be happy to provide you with a quote for a complete custom wheelset with hubs and spokes of your choice. Please send us an e-mail to [email protected].
Notes: Extralite CyberRear freehub mechanisms are only suitable for road and gravel use, not for MTB. The gear ratio must be at least 1.00. Shorter gear ratios can lead to increased torque and damage the freewheel mechanism.
Technical data:
Area of application: Road, Gravel
Hub material: Aluminum
Freehub body material: Aluminum
Axle standard: 12x142 mm thru axle
Number of holes: 24 holes
Brake rotor mount: Center Lock
Freehub compatibility: SRAM XDR
Freehub type: 2 pawls, 32 ratchets (titanium)
Bearings: 4x grooved ball bearings ABEC5, 2RS sealed, HyperCeramic hybrid ceramic bearings
Spoke type: Straightpull
max. permissible spoke tension: 1274 Nm
maximum system weight: n/a
Finish: glossy
Color: black with white laser logo
Weight according to manufacturer: n/a
Weight self-weighed: 141g
Scope of delivery:
1x EXTRALITE rear hub CyberRear SPC 3+ Road Center Lock | HyperCeramic 12x142 mm thru axle | SRAM XDR
1x EXTRALITE freehub grease Alugrease Super 1 | 5 g
