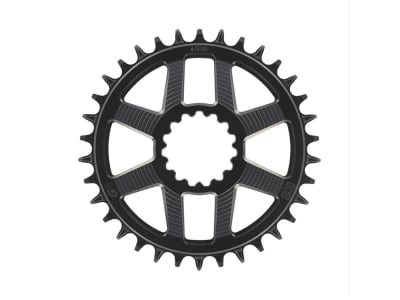

E*THIRTEEN Round chainring Helix Race GR Direct Mount | 1-speed narrow wide | Black
The Helix Race GR chainring was specially developed for the Helix Race GR crank to withstand the tough conditions in downhill, bike park and freeride. It is CNC-milled in one piece from 7075-T6 aluminium and then anodized. The special tooth profile reliably prevents the chain from jumping off, reduces noise and system wear. The chainring is compatible with Shimano and SRAM drivetrains.
Note: The chainring is only compatible with the e*thirteen Helix Race GR 83 mm crank.
Technical data:
Application: Enduro, Downhill, Freeride
Material: Aluminum 7075-T6
Technology: Narrow Wide
Mounting: e*thirteen Direct Mount
Number of teeth: 34, 36 teeth
Compatibility crank: e*thirteen Helix Race GR 83 mm
Chain compatibility: 11-speed and 12-speed Shimano and SRAM drivetrains, including T-Type
Mounting: QuickConnect
Chainline: 56.5 mm
Offset: 7 mm
Adjustment options: none
Range (ovalization): n/a A.
Timing (force application): n/a A.
Finish: glossy
Color: black
Weight according to manufacturer: 34T (74g), 36T (79g)
Weighed weight: 76g (34 teeth)
Scope of delivery: 1x E*THIRTEEN chainring round Helix Race GR Direct Mount | 1-speed narrow wide | black
