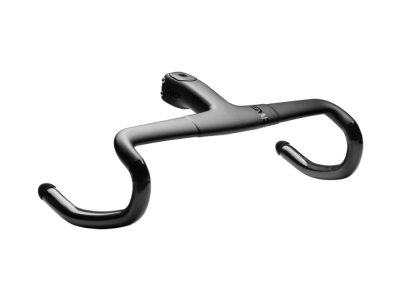

ENVE stem/handlebar unit SES AR Custom One-Piece IN-Route
ENVE products have experienced a rapid rise in the world of cycling. They have even been tested in major races such as the Tour de France or the Vuelta in Spain. The carbon specialists from the USA develop only the uncompromisingly best add-on parts for professionals and other dedicated cyclists.
With the SES AR One-Piece, the first stem/handlebar unit from ENVE is now available. The one-piece aero cockpit was originally developed for Tadej Pogačar and designed according to his requirements for racing. Although it is a handlebar and stem unit, the cockpit actually consists of two parts that are joined together in the production process. This allows ENVE to combine any handlebar width with any stem length, resulting in 45 different combinations. All stem/handlebar units are custom made in-house in Ogden, Utah and come with an ENVE factory warranty of 5 years and lifetime ENVE Incidental Damage Protection.
The top of the handlebar is flat and streamlined. Although the drops are positioned slightly outwards, they remain pointing straight backwards. This increases safety in road races when you are in close contact with the competition. ENVE relies on its own IN-Route system for the fully integrated cable routing. This routes all the shift and brake lines through the stem, then through the headset and aligns them in front of the steerer tube. From there, the front brake enters a connection at the front of the steerer tube to be routed through the left fork leg to the brake. The rest flows around the steerer tube into the down tube, which not only looks very clean and tidy, but also offers aerodynamic advantages without compromising rider comfort.The whole thing is rounded off by a bracket from K-EDGE, which has been optimized for the new cockpit and hugs the handlebars perfectly in terms of shape and aerodynamics.
ENVE IN-Route
Hidden cables and lines are the be-all and end-all when it comes to the modern bike and aerodynamic advantages in competition. As a complete system, ENVE IN-Route offers a variety of stem, handlebar, headset and fork combinations to provide the right fit for every frame material and rider size.It routes all shift and brake lines through the stem, then through the headset and aligns them in front of the steerer tube. From there, the front brake enters a port on the front of the steerer tube to be routed through the left fork leg to the brake. The rest flows around the steerer tube into the down tube. These features make IN-Route a complete all-in-one cable integration solution.
The SES AR One-Piece is compatible with ENVE's Melee, Fray and MOG models as well as a variety of custom frames that support the IN-Route system. In addition, ENVE has developed special headset covers to extend compatibility with leading brands.
Note: We recommend registering the product within 60 days of purchase to be eligible for warranty services and accident protection program. Register here.
Technical data:
Area of application: Road, Gravel
Material: UD-Carbon
Top link shape: aero
Lower link shape: compact
Cable routing: fully integrated routing through handlebar-stem unit and head tube, fully integrated routing through handlebar-stem unit and out towards the frame
Clamp diameter steerer tube: 1 1/8"
Stem length: 90 mm, 95 mm, 100 mm, 105 mm, 110 mm, 115 mm, 120 mm, 125 mm, 130 mm
Handlebar width upper link (center - center): 380 mm, 400 mm, 420 mm, 440 mm, 460 mm
Handlebar width lower link (outer - outer): 430 mm, 450 mm, 470 mm, 490 mm, 510 mm
Reach: 76 mm
Drop: 129 mm
Flare: 50 mm
Backsweep: 0°
max. system weight: n/a
max. tightening torque 5.5 Nm
Finish: matt
Color: black
Weight according to manufacturer: from 330g
Weight self-weighed: 382g (400 mm / 100 mm, incl. spacer & ahead cap)
Scope of delivery:
1x Enve stem/handlebar unit SES AR Custom One-Piece IN-Route
1x K-Edge bracket for Garmin & Wahoo
5x titanium screws
2x handlebar end plugs
1x top cap
2x 5 mm spacer
3x 10 mm spacer
1x 10 mm external bypass spacer
1x Shimano junction box carrier
