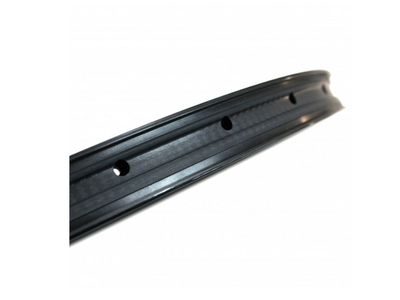

DUKE rim 29" Fury Jack SLS3 6Ters 29 UD carbon | rear wheel
The Fury Jack SLS3 6Ters is the flagship of the current enduro series and the preferred choice of Rémy Absalon, the multiple winner of the Mégavalanche downhill race. Compared to the SLS2 version, Duke has managed to improve these rims. In doing so, they have once again pushed the apparently technically possible limits.
How did the French do this? They took a closer look at the individual elements of the rim and looked for optimization options. In addition to small material savings in some places, a new resin was used. This not only made it possible to slim down, but also to increase impact resistance at the same time. Similar to the SLS2 production process, post-processing or painting is not necessary here either.
The rim is provided with an asymmetrical rim profile, which allows a more even angle of the spokes. This optimization of the spoke angle brings with it a multitude of advantages. The tension on both sides can be better balanced, which is beneficial to the durability of the entire impeller. The lateral stiffness, which is normally directional, is also adjusted so that the impeller itself becomes stiffer.
With the "6Ters" concept, Duke goes its own way. The cross-section of the rims is different on the front and rear wheels. At the front, the larger inner width allows for more grip and rigidity, while at the rear, emphasis was placed on impact resistance and comfort.
The SLS3 6Ters 30 rim is intended for the rear wheel and, in combination with the 33 on the front wheel, represents the ideal combination.
3 year guarantee on carbon rims
Duke selects the materials used very carefully in order to be able to offer you the best possible product. Therefore, the quality standards for all products, subcontractors and partners are very strict. Duke guarantees for a period of three years that the rims offered will not have any hidden defects. However, improper assembly or use of the products will void the warranty.
Furthermore, Duke offers a crash replacement for its carbon rims. In the event of an accident or serious fall, violent impacts can damage the rim and make it impossible to use. With this offer, Duke offers you a service with which you can replace your rim within two years from the date of purchase at special conditions: you receive a 30% discount on the price of the rim you have purchased.
We would be happy to make you an offer for a complete custom wheelset with hubs and spokes of your choice. Please send us an email to [email protected] !
Technical specifications:
Area of intended use : All-Mountain, Enduro, E-Bike
Materials: carbon
Rim Type: Clincher (clincher and folding)
Brake type: only for disc brake
ETRTO: 622x29
EARTH: 600mm
Inner width: 29 mm
External width: 35mm
Rim Height: 22mm
Offset: 3.0mm (asymmetric)
Number of holes: 28 or 32 holes
tubeless capable: yes
ASTM classification: n/a
recommended tire width: 2.3"-2.7" (58-70 mm)
Maximum tire pressure: 2.2 bar (at 2.4" tire width)
Maximum system weight: 130 kg (rider, bike, clothing and possibly luggage)
maximum spoke tension: 1100 - 1200 N
Features: asymmetric rim for optimal spoke tension
Valve hole bore: 6 mm (SV)
Finish: UD carbon satin finish
Color: Black
Weight according to the manufacturer: 525g
Weight weighed:
Scope of delivery: 1x DUKE rim 29" Fury Jack SLS3 6Ters 29 UD carbon | rear wheel
