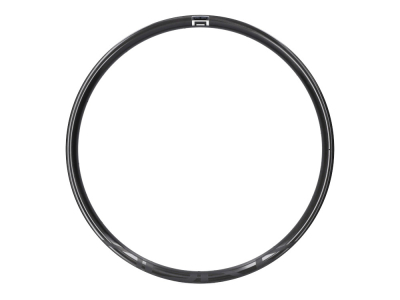

DUKE rim 28" Baccara WRX 27 SLR2 UD-Carbon Gravel asymmetric
Can it be a little wider? With an inner width of 29 millimetres, the Duke WRX 27 rim offers you the option of riding wide gravel tires with extremely low air pressures without the tires becoming unstable in fast corners. This provides you with excellent damping on rough gravel and trails and thus ensures more comfort and less fatigue on long distances. With an outer width of 35 millimetres and a tread height of 27 millimetres, the rim profile of the WRX 27 also contributes to shock absorption.
The hook profile of the rims ensures a secure fit of the tire. The lower weight is achieved by optimizing the use of materials, with particularly stressed areas being reinforced and uncritical areas being spared. In addition, the amount of resin used has been further reduced without sacrificing stability.
Thanks to the SLR2 production technology developed by Duke, it is no longer necessary to rework or paint the rims during the production process. This alone can save up to 10% in weight and achieve a very high surface quality. The use of highly modular carbon fibers also improves the inherent damping, which is particularly beneficial for riding comfort.
The rims are definitely top of the class in terms of load capacity. Despite the flat shape, with a maximum system weight of 125 kg, a little more luggage can be carried.
The rims have an asymmetrical rim profile, which enables a more even spoke angle. This optimization of the spoke angle has a number of advantages. The spoke tension on both sides can be better aligned, which is beneficial to the durability of the spokes and the wheel as a whole. The normally direction-dependent lateral stiffness is also adjusted, making the wheel more stable.
3-year warranty and lifetime crash replacement on UD carbon rims
Duke selects the materials used very carefully in order to offer you the best possible product. Therefore, the quality standards for all products, subcontractors and partners are very strict. Duke guarantees that the rims offered have no hidden defects for a period of two years. However, improper installation or use of the products will invalidate the warranty.
In the event of accidents or heavy falls, violent impacts can damage the rim and make it impossible to use. Duke therefore offers a lifetime crash replacement for its UD carbon rims. In exchange, you will receive a 50% discount on the rim you have purchased.
We will be happy to provide you with a quote for a complete custom wheelset with hubs and spokes of your choice. Please send us an e-mail to [email protected]!
Technical data
Area of application: Gravel
Material: Carbon
Rim type: clincher (clincher and folding tires)
Brake type: for disc brakes only
ETRTO: 622x29
ERD: K.A.
Inner width: 29 mm
Outer width: 35 mm
Rim height: 27 mm
Offset: 2.0 mm (asymmetrical)
Number of holes: 24, 28 or 32 holes
tubeless compatible: yes
ASTM classification: n.a.
recommended tire width: 36 mm to 2.4"
maximum tire pressure: 4.0 bar (with 38 mm tire width)
maximum system weight: 125 kg (rider, bike, clothing and possibly luggage)
maximum spoke tension: 1100 - 1200 N
valve hole bore: 6 mm (SV)
Finish: UD carbon, satin gloss
Color: black
Weight according to manufacturer: 320g (+/-15g)
Weight when weighed: 327g
Scope of delivery: 1x DUKE 28" Baccara WRX 27 SLR2 UD-Carbon Gravel asymmetric rim
