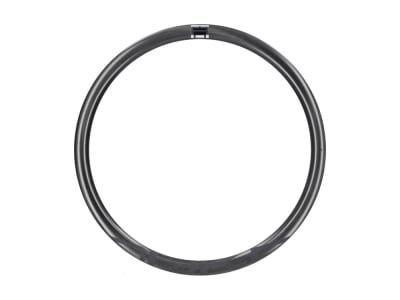

DUKE rim 28" Baccara Ultra 36 SLR2 Disc UD-Carbon symmetrical
Summit conquerors will be thrilled by this lightweight rim. Duke has broken all limits with this rim. A weight of less than 300g with a rim height of 36 mm is unrivaled. Nevertheless, safety has not been spared, as it is approved for a system weight of 95 kg.
How did the French achieve this? They took a closer look at the individual elements of the rim and looked for ways to optimize them. In particular, a new resin was used. Thanks to the SLS2 production process, there is no need for post-processing or painting after production. The use of highly modular carbon fibers also improves the inherent damping, which in turn has a positive effect on ride comfort. The modified design enables unrestricted tubeless use and brings measurable aerodynamic benefits.
In the Ultra version, material has also been saved in non-critical areas in order to reduce weight without compromising functionality.
2-year warranty and lifetime crash replacement on UD carbon rims
Duke selects the materials used very carefully in order to offer you the best possible product. Therefore, the quality standards for all products, subcontractors and partners are very strict. Duke guarantees for a period of two years that the rims offered have no hidden defects. However, improper installation or use of the products will invalidate the warranty.
In the event of accidents or heavy falls, violent impacts can damage the rim and make it impossible to use. Duke therefore offers a lifetime crash replacement for its UD carbon rims, giving you a 50% discount on the rim you have purchased in exchange.
We will be happy to provide you with a quote for a complete custom wheelset with hubs and spokes of your choice. Please send us an e-mail to [email protected]!
Technical data:
Application: Road bike, Gravel
Material: Carbon
Rim type: clincher (clincher and folding tires)
Brake type: only for disc brakes
ETRTO: 622x21
ERD: 570.5 mm
Inner width: 21.0 mm
Outer width: 27.6 mm
Rim height: 36 mm
Offset: no
Number of holes: 24 or 28 hole
tubeless compatible: yes
ASTM classification: n/a
recommended tire width: 25 - 53 mm
maximum tire pressure: 7.5 bar (28 mm)
maximum system weight: 95 kg (rider, bike, clothing and possibly luggage)
maximum spoke tension: 1100 - 1200 N
Features: -
valve hole bore: 6 mm (SV)
Finish: UD carbon, satin gloss
Color: black
Weight according to manufacturer: 295g
Weight self-weighed: 294g (24 hole)
Scope of delivery: 1x DUKE rim 28" Baccara Ultra 36 SLR2 Disc UD carbon symmetrical
