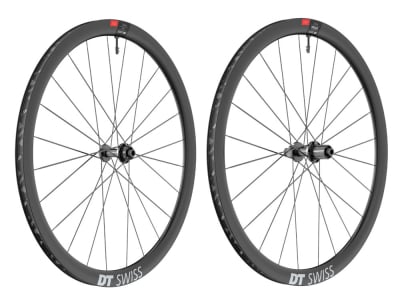

DT SWISS wheelset 28" ARC 1100 Dicut 38 mm | thru axle | Shimano Road / SRAM XDR
Good is not good enough for you - you want the best? Then rely on the ARC 1100 Aero wheels from DT Swiss and let their positive characteristics impress you on your road bike adventures. Fully trimmed for aerodynamics, you can really pick up the pace with them and easily leave the competition behind you. Thanks to the carefully considered selection of components and the typically high manufacturing quality, they guarantee you the best functionality and a long service life.
ARC 38 mm Aero carbon rim
Carbon has also become the first choice of rim material at DT Swiss, where the Swiss company has implemented a new concept in the production process that makes additional coating unnecessary. This saves weight and achieves an exceptional surface finish. The 38 mm high sidewall ensures good aerodynamic values without putting unnecessary strain on the scales and shows its advantages both on flat and hilly terrain.Externally, the rim shape was developed according to the DT Swiss AERO+ concept and shows its advantages especially in crosswinds. Angled air currents create a sailing effect, which gives you additional propulsion and allows you to save power. The internal nipples also increase the streamlining effect and give the wheel a clean look.
Thanks to the enormous 24 mm inner width, even large-volume tires are perfectly supported, which prevents them from buckling in fast bends and ensures more riding stability and better damping capacity. In addition, the rim is of course designed for tubeless systems, allowing you to ride with lower air pressure and further improving comfort and grip.
DT Swiss 180 Dicut hub
No compromises are made in the center either, where the elegant DT Swiss 180 hub in Dicut design spins. Despite its very low weight, it can withstand even the toughest applications thanks to its proven design and always guarantees reliable propulsion with the Ratchet-EXP toothed pulley freehub. Thanks to the large-area power transmission via 36 teeth, the system can transmit significantly greater forces than a pawl freewheel and is less susceptible to wear.The patented two-in-one spoke mounts give the hub a slim shape and support the wheel's good aerodynamics. The perfectly sealed ceramic bearings are legendary. In addition to incredibly smooth running, they guarantee a long service life and low maintenance.
DT Swiss Aerolite / Aero Comp Straightpull spokes with Pro Lock nipples
The DT Aerolite / Aero Comp spokes also ensure weight savings and support the good aerodynamics of the wheel thanks to their blade shape. The middle section was flattened using the cold forging process and therefore has a particularly high material strength. The straight design and the elimination of the highly stressed spoke bend also eliminates a potential breakage point and minimizes susceptibility to punctures.
In the Pro Lock process, a patented two-component adhesive is injected into the nipple thread, enabling the construction of extremely durable wheels. As soon as the nipples are screwed in, the adhesive is activated and hardens completely at room temperature after approx. 6 - 7 hours. Repeated re-centering is still possible without any problems, although the adhesive strength decreases slightly each time.
Technical data:
Area of application: Road bike
Wheel size: 28" (ETRTO: 20-622)
Rim type: clincher for folding and clincher tires
Brake type: for disc brakes only
Brake rotor mount: Center Lock
Rim material: UD carbon
Inner width: 20 mm
Outer width: 36 mm
Rim height: 38 mm
Number of holes: 24
Offset: no
Spokes: left: DT Swiss Aerolite Straightpull | right: DT Swiss Aero Comp Straightpull
Spoking pattern: 2x crossed
Axle standard front: 12x100 mm thru axle
Rear axle standard: 12x142 mm thru axle
Front bearings: 2x ceramic hybrid industrial deep groove ball bearings
Rear bearing: 4x ceramic hybrid industrial deep groove ball bearings
Freehub compatibility: 11-, 12-speed Shimano Road (mounted) | 12-speed SRAM XDR (included)
Freehub type: Ratchet-EXP system, 2 pulleys, 36 engagement points
tubeless compatible: yes
recommended tire width: 25 - 64 mm
maximum air pressure: n.a.
maximum system weight: 110 kg (rider, bike, clothing and possibly luggage)
Color rim: black matt with white decals
Color hub: black matt
Weight according to manufacturer: 587g (front wheel), 712g (rear wheel)
Weight self-weighed: 599g (front wheel), 745g (rear wheel)
Scope of delivery:
1x front wheel
1x rear wheel
1x 12-speed SRAM XDR freehub body
2x tubeless valve
Tubeless rim tape (already mounted)
