DT SWISS suspension fork 29" F 232 One 110 mm Crown Adjust tapered BOOST black 44 mm offset
In order to manufacture a competitive product, all requirements for the respective application must be met. DT Swiss has always done this with Swiss precision and a sense for unique quality.
To achieve holistic performance, however, you have to do more. DT Swiss has redefined the key factors for cross country riding and taken them to the next level to give you the ultimate suspension fork.
Cross country is constantly evolving, the descents are getting steeper, the climbs more technical and artificial obstacles such as rock gardens, berms and drops place significantly higher demands on man and material. The F 232 ONE was developed precisely for these challenges, with a fork shape inspired by nature that places the material exactly where the forces are greatest, setting new standards in terms of stiffness/weight ratio.
The three-stage adjustment of the INCONTROL damping in riding mode offers you the perfect compression stage for every situation: LOCK for sprints, DRIVE for technical climbs and OPEN mode allows you to leave the brakes open for downhill riding.
INCONTROL
With Incontrol, DT Swiss provides a platform that can be adjusted in three stages. In Open mode, you have maximum sensitivity and traction. The slightly higher compression damping in Drive mode guarantees you efficient propulsion in the terrain and Lock lets you master the approach to your favorite trail in a new best time.
LINEAIR
The large volume of the positive and negative air chambers is the key to the linear spring curve, which is also responsible for the back pressure in the mid-travel range. An air bypass automatically balances the air suspension system of the F 232 ONE fork.
APT
The APT (Adaptable Progression Tune) system allows the progression of the spring curve to be adjusted by simply adding or removing one or more volume spacers in the air chamber of the suspension fork. This allows the rider to adapt the spring characteristic to their riding style and trails. The highlight: the response always remains sensitive regardless of the selected setup.
Technical data:
Area of application: Cross country, marathon
E-bike ready: no
Wheel size: 29"
Material fork crown/stem: aluminum / aluminum
Material stanchions/Ø: Aluminium, black anodized / 32 mm
Material down tubes: Magnesium cast alloy
Stanchion tube diameter: 32 mm
Axle standard: 15x110 mm BOOST thru axle
Steerer tube: 1.5" to 1 1/8" tapered
Steerer tube length: 230 mm
Suspension travel: 110 mm
Suspension system: Lineair
Suspension curve adjustment: yes, via spacers (APT system)
Damping: Incontrol
Lockout: 3-stage (Open, Drive, Lock) adjustable on fork crown
Installation height: 512 mm
Brake mount: Postmount PM6 (160 mm)
Max. permissible brake disk size: 203 mm
Maximum tire diameter: 750 mm
Max. tire width: 73 mm / 2.5" (with max. 720 mm tire diameter)
Offset: 44 mm
Color: black matt
Weight according to manufacturer: 1510g

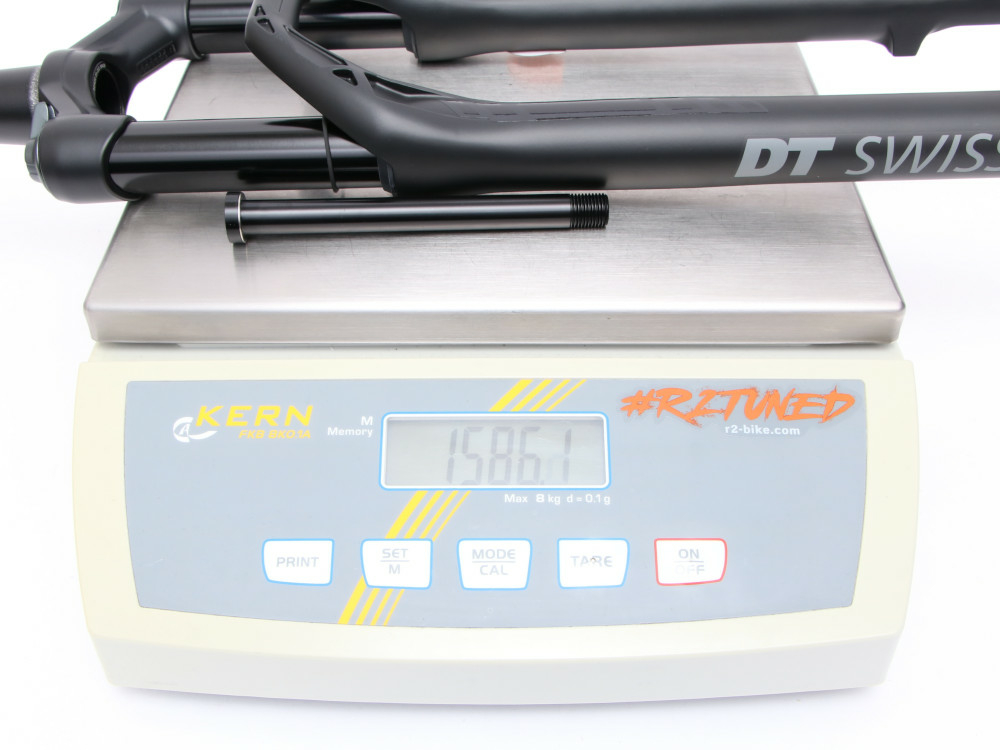

Weight as weighed: 1586g (incl. thru axle)
Scope of delivery:
1x DT SWISS suspension fork 29" F 232 One 110 mm Crown Adjust tapered BOOST black 44 mm offset
1x DT SWISS 15 x 110 mm Boost thru axle

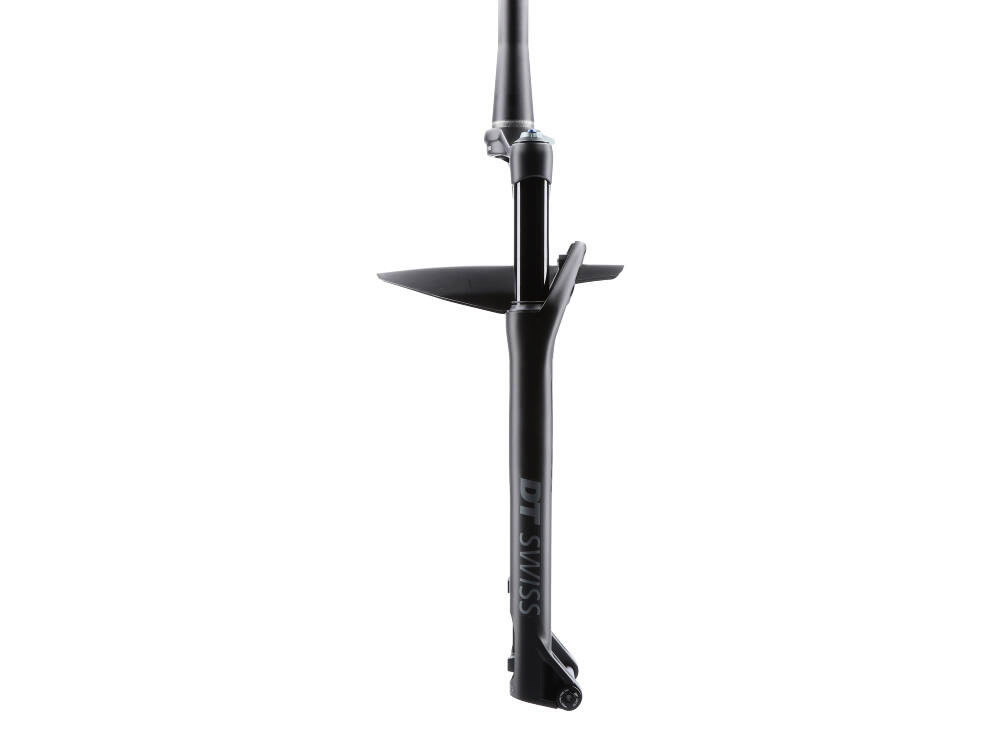

1x mudguard
1x APT kit (volume spacer)
1x Ahead fork claw
2x brake line holder
