Description
DT SWISS rim 29" HX 531 Hybrid | E-Bike
DT Swiss has stood for innovative products of the highest quality for years. Starting as a manufacturer of high-quality spokes, the company has continuously expanded its product range. Since 2004, the Swiss have also had rims in their range, which they are constantly improving through feedback from cycling professionals and taking into account new developments in materials and manufacturing. Today, DT Swiss rims are among the most driven on the market.
If you want to set off into the unknown with your 29er eMTB, the HX 531 with its 30 mm internal width is the perfect choice. Due to the optimal mixture of stability, weight and width, it can be ridden with many different tire widths and is the ideal choice for all eMTBs that are also to be ridden in difficult terrain.
NOTE: The rim requires the use of the DT Swiss Squorx Pro Head nipples, which are included in the scope of delivery. Black nipples can be ordered separately in the shop.
We would be happy to make you an offer for a complete custom wheelset with hubs and spokes of your choice. Just send us an email to [email protected] !
Technical specifications:
Area of intended use : Tour, AllMountain, Trail, Enduro
Material: aluminum
Rim Type: Clincher (clincher and folding)
Brake type: only for disc brake
ETRTO: 622x30
EARTH: 601mm
Internal width: 30mm
External width: 35mm
Rim Height: 21mm
Offset: 0 mm (symmetric)
Number of holes: 28, 32 or 36 holes
tubeless capable: yes
recommended tire width: 47-89 mm
maximum tire pressure: 2.0-4.7 bar
Maximum system weight: 150 kg (rider, bike, clothing and possibly luggage)
maximum spoke tension: 1200N
Features: PHR washer, DT Pro Lock Squorx Head nipple
Valve hole bore: 6.5 mm (SV)
Finish: matte
Color: Black
Weight according to manufacturer: 610g (without washers)

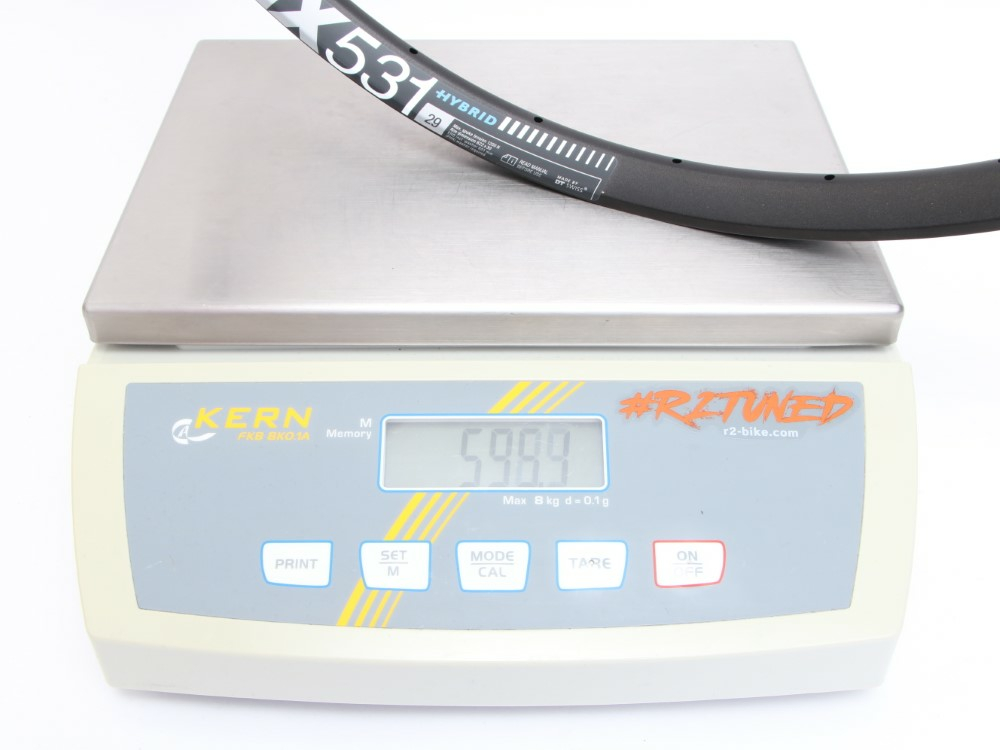

Weight weighed by yourself: 596g (28 hole, without washers)
Scope of delivery:
1x DT Swiss rim
including PHR washer and DT Pro Lock Squorx Pro Head nipple
