Description

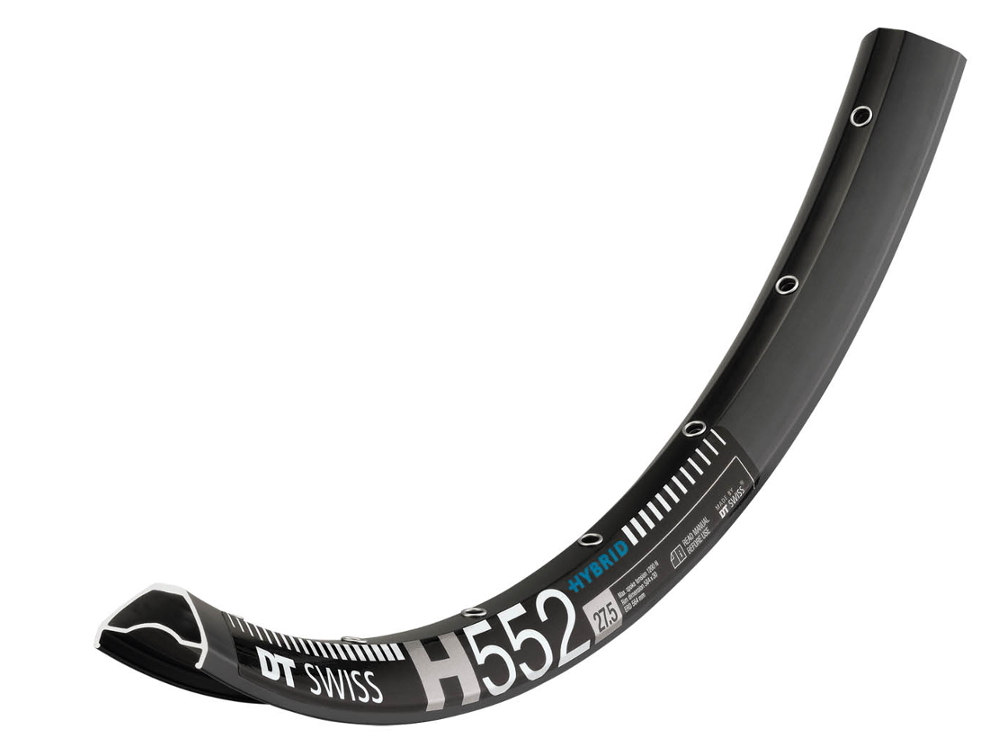

DT SWISS rim 27.5 "| 650B" H 522 Hybrid | E bike
For years, DT Swiss has stood for innovative products of the highest quality. Starting as a manufacturer of high-quality spokes, the company continuously expanded its product range. Since 2004, the Swiss also have rims in their program, which they continue to improve thanks to the feedback of professional cyclists and taking into account new developments in the materials and manufacturing sector. Today, DT Swiss rims are among the most dangerous on the market.
The H 552 is the beast that supports cost-conscious riders on any terrain with its 30mm inner rim width. You can choose the tire width and get the DT Swiss reliability at a price that leaves you enough to recharge your battery over and over again.
The rim is connected using the sleeve joint method. A molding is pressed evenly into both ends of the rim profile and the rim is put together. Convinced by the robustness, DT Swiss releases the rim up to a system weight of 150 kilograms. Like all DT Swiss rims of the current program, the H 552 Hybrid is perfectly suited for tubeless operation. All you need is a matching tubeless tape, tubeless valves and sealant.
We will gladly make you an offer for a complete custom wheelset with hubs and spokes of your choice. Just send us an e-mail to [email protected] !
Technical specifications:
intended use : Tour, AllMountain, Trail, Enduro
Material: aluminum
Rim type: clincher (wire and folding tire)
Brake type: only for disc brake
ETRTO: 584x30
EARTH: 564 mm
Inner width: 30 mm
Outer width: 35 mm
Rim height: 20 mm
Offset: 0 mm (symmetrical)
Number of holes: 28, 32 or 36 holes
tubeless capable: yes
Recommended tire width: 47-89 mm
maximum tire pressure: 2.0-4.7 bar
maximum system weight: 150 kg (driver, bike, clothes and possibly luggage)
maximum spoke tension: 1200N
Features: Sleeve Joint
Valve hole: 6.5 mm (SV)
Finish: matt
Color: Black
Weight according to the manufacturer: 580g
Weight weighed by yourself:
Scope of supply: 1x DT SWISS rim 27,5 "| 650B" H 522 Hybrid | E bike
