DT SWISS rear hub 240 EXP Classic Non Disc 5x130 mm quick release | freehub Shimano 11-speed Road
Lighter, stiffer, more precise and easier to maintain - these are the strengths of the new DT Swiss 240 hubs. These properties have been achieved thanks to the Ratchet EXP technology. This not only means that the hubs have fewer components and therefore lower weight and less wear, it also allows the bearing on the drive side to be positioned much further out. The greater distance between the bearings results in greater hub rigidity, lower bearing loads and therefore greater durability. The stiffness on the hub body serves to distribute the load more evenly on the spokes. Drive and braking forces are transmitted even better from both spoke flanges to all spokes. One-sided load peaks are prevented, which protects the hub, spokes and rim. The super reliable sprocket freehub system with its large contact surface and 36 engagement points ensures extremely direct and reliable power transmission.
DT Swiss hubs stand for simple construction and maximum reliability. Thanks to the use of elaborate seals and bearing sizes adapted to the loads, the hubs do not require any adjustment of the bearing play. This means that the rider does not have to worry about the function of the hubs for years! Should a service be necessary after tens of thousands of kilometers, the hubs can be disassembled and serviced within a few minutes without special tools thanks to the DT Swiss plug-in system.

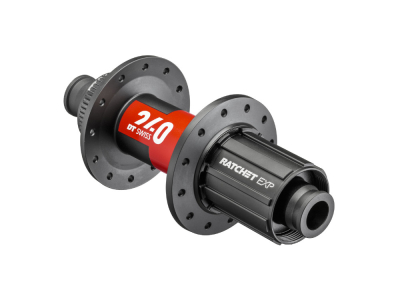

NOTE: The illustration shows the Center Lock version of the hub.
Technical data:
Area of application: Road bike, cyclocross
Hub material: Aluminum, steel
Freehub body material: Aluminum
Axle standard: 5x130 mm quick release
Number of holes: 24 or 28 hole
Brake rotor mount: without
Freehub compatibility: 11-, 12-speed Shimano Road | 11-speed SRAM Road
Freehub type: Ratchet EXP, 2 pulleys, 36 engagement points
Bearing: 4x industrial bearings
Seal: n/a
Spoke type: Standard spokes (J-bend)
Spoke tension: n/a
Maximum system weight: n/a
Color hub: black matt
Color decals: red-white
Weight according to manufacturer: 221g
Weight self-weighed: n/a
Scope of delivery: 1x rear hub DT SWISS 240 EXP Classic Non Disc 5x130 mm quick release | Shimano Road
