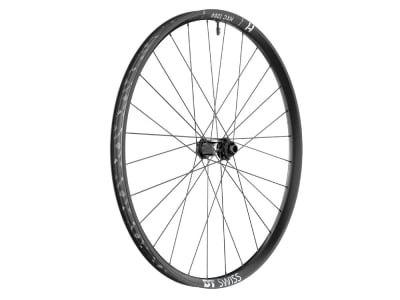

DT SWISS front wheel 29" HXC 1200 Spline Center Lock | 15x110 mm Boost
Good is not good enough for you - you want the best? Then rely on the HXC 1200 wheels from DT Swiss and be impressed by their positive characteristics during your e-bike races. Carbon rims, an elegant 180 mm hub and sturdy Complite spokes leave nothing to be desired and guarantee you the best functionality and a long service life at all times.
HXC carbon rims
Carbon has also become the first choice of rim material for DT Swiss. Weight, steering precision and stability are almost unbeatable, and the Swiss use a new production technology. This means that the outer layers consist of continuous fiber strands and are not cut up. It also compresses the carbon fabric very strongly. This avoids weak points from the outset and takes durability to a new level. The vulnerable rim flange in particular resists punctures even better. In addition, the rim does not need to be reworked or painted after removal from the mold, but has the final finish immediately. After production, a new, patent-pending test procedure, which enables a layer-by-layer inspection, guarantees that only perfect rims are delivered. So you can always rely on your material.
Of course, the inner width is dimensioned so that even wide tires get an optimally round shape and ensure better grip and high comfort. The rim flange is also hookless and therefore offers the best tubeless compatibility.
The HXC rims have an asymmetrical profile, which enables a more even spoke angle. This optimization of the spoke angle has a number of advantages. The tension on both sides can be better aligned, which is beneficial to the durability of the spokes and the wheel as a whole. The normally direction-dependent lateral stiffness is also equalized, making the wheel more stable.
DT Swiss 180 Spline hub
The hybrid version of the 180 front hub is synonymous with indestructible. Specially developed for the high loads on e-bikes, the oversized housing is particularly striking compared to the standard version. This can better absorb and distribute the forces that occur. Together with the enlarged bearings and the stable axle, it also ensures high rigidity.
Despite these numerous features, the weight remains within a pleasing range, so that it could also be shortlisted for non-E-bikers. Typical for DT Swiss is the high-quality workmanship, which guarantees you a long service life and low maintenance.
DT Swiss Complite with Pro Lock nipples
The DT Swiss Complite spoke has been consistently trimmed for stability in order to better withstand the high loads on the E-bike. During the development process, various versions were extensively tested until the final shape and choice of raw materials were finalized. Similar to the Revolite, the result is a cross-shaped cross-section flattened on one side, which is considered the best compromise between the above-mentioned properties. In addition, a special, patented cold forging process ensures that the material is compacted and thus also increases stability. Nevertheless, the spokes can also withstand harder impacts, which makes them ideal for use on mountain bikes.
In the Pro Lock process, a patented two-component adhesive is injected into the nipple thread, enabling the construction of extremely durable wheels. As soon as the nipples are screwed in, the adhesive is activated and hardens completely at room temperature after approx. 6 - 7 hours. Repeated re-centering is still possible without any problems, although the adhesive strength decreases slightly each time.
Technical data:
Area of application: Cross country e-bike
Wheel size: 29" (ETRTO: 30-622)
Rim type: clincher (clincher and folding tires)
Brake type: for disc brakes only
Brake rotor mount: Center Lock
Hub material: Aluminum, steel
Rim material: UD Carbon
Spoke material: Stainless steel
Inner width: 30 mm
Outer width: 37 mm
Rim height: 22 mm
Offset: yes
Number of holes: 28 hole
Axle standard: 15x110 mm Boost thru axle
Bearing: 2x industrial stainless steel bearings
Spokes: DT Swiss Complite Hybrid Straightpull 2.0 / 1.5 - 2.3 / 2.0, T-Head
Lacing pattern: 3-crossed
tubeless compatible: yes
recommended tire width: n/a
max. air pressure: with inner tube: n/a
maximum system weight: 140 kg (rider, bike, clothing and possibly luggage)
Valve hole: Presta valve (SV)
Color rim / finish: black / UD Carbon matt
Color decor: silver-white
Color hubs: black with silver decals
Weight according to manufacturer: 893g
Weight self-weighed: 914g
Scope of delivery:
1x DT SWISS front wheel 29" HXC 1200 Spline Center Lock | 15x110 mm Boost incl. tubeless rim tape
1x tubeless valve
