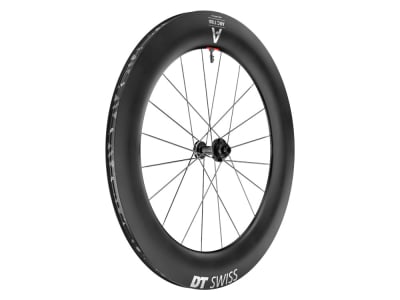

DT SWISS front wheel 28" ARC 1100 Dicut Center Lock 85 mm | 12x100 mm thru axle
Good is not good enough for you - you want the best? Then rely on the ARC 1100 wheels from DT Swiss and be impressed by their positive characteristics on your road bike adventures. Fully trimmed for aerodynamics, you can really pick up the pace with them and easily leave the competition behind you. Thanks to the carefully considered selection of components and the typically high manufacturing quality, they guarantee you the best functionality and a long service life.
ARC 85 mm AERO+ carbon rim
Carbon has also become the first choice of rim material at DT Swiss, with the Swiss company implementing a new concept in the production process that makes additional coating unnecessary. Together with the V-shape cross-section, the mighty 85 mm high flank ensures previously unattained aerodynamic values without unnecessarily burdening the scales and shows its advantages in the fight against time.Externally, the rim shape was developed according to the DT Swiss AERO+ concept and shows its advantages especially in crosswinds. Oblique air currents create a sailing effect, which gives you additional propulsion and allows you to save a lot of energy. The internal nipples also increase the streamlining effect and give the wheel a clean look.
The dreaded negative influences on the steering torque have also been minimized. These have the effect that strong and asymmetrical crosswinds can lead to abrupt changes in flow and sometimes trigger uncontrollable steering movements, which makes precise and smooth riding much more difficult. The AERO+ profile ensures an even distribution of lateral force and you can relax and go at your own pace.
Thanks to the enormous inner width of 22 mm, even large-volume tires are perfectly supported, which prevents them from kinking in fast bends and ensures greater riding stability and better damping capacity. In addition, the rim is of course designed for tubeless systems, allowing you to ride with lower air pressure, further improving comfort and grip and reducing susceptibility to punctures.
DT Swiss 180 Dicut hub
No compromises are made in the center either, where the elegant DT Swiss 180 hub in Dicut design spins. Despite its very low weight, it guarantees direct and precise steering. The patented two-in-one spoke mounts give the hub a slim shape and support the wheel's good aerodynamics. The perfectly sealed SINC ceramic bearings are legendary. In addition to incredibly smooth running, they guarantee a long service life and low maintenance.
DT Swiss Aerolite Straightpull spokes with Pro Lock nipples
The DT Aerolite spokes also ensure weight savings and support the good aerodynamics of the wheel thanks to their blade shape. The middle section was flattened using the cold forging process and therefore has a particularly high material strength. The straight design and the elimination of the highly stressed spoke bend also eliminates a potential breakage point and minimizes susceptibility to punctures.
In the Pro Lock process, a patented two-component adhesive is injected into the nipple thread, enabling the construction of extremely durable wheels. As soon as the nipples are screwed in, the adhesive is activated and hardens completely at room temperature after approx. 6 - 7 hours. Repeated re-centering is still possible without any problems, although the adhesive strength decreases slightly each time.
Technical data:
Area of application: time trial, triathlon
Wheel size: 28" (ETRTO: 22-622)
Rim type: clincher for folding and clincher tires
Brake type: for disc brakes only
Brake rotor mount: Center Lock
Rim material: UD carbon
Inner width: 22 mm
Outer width: 29 mm
Rim height: 85 mm
Number of holes: 20
Offset: no
Axle standard: 12x100 mm thru axle
Bearing: 2x ceramic industrial deep groove ball bearings
Spokes: DT Swiss Aerolite Straightpull, T-Head
Lacing pattern: 2x crossed
tubeless compatible: yes
recommended tire width: 25 - 64 mm
maximum air pressure: with inner tube: 8.5 bar (28 mm tires) | tubeless: 7.0 bar (25 mm tires)
maximum system weight: 110 kg (rider, bike, clothing and possibly luggage)
Rim color: black matt with silver decals
Hub color: black
Weight according to manufacturer: n.a.
Weight self-weighed: -
Scope of delivery:
1x DT SWISS front wheel 28" ARC 1100 Dicut Center Lock 85 mm | 12x100 mm thru axle
1x tubeless valve + rim tape
1x wheel bag
