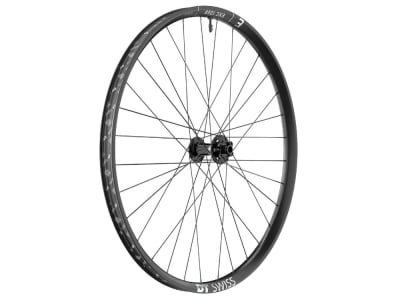

DT SWISS front wheel 27.5" EXC 1200 Classic 6-hole | 15x110 mm Boost
With this robust wheel, you are perfectly equipped for all your enduro adventures. Carbon rims, a classy 180 mm hub and sturdy Revolite spokes leave nothing to be desired and guarantee you unhindered propulsion at all times.
EXC 1200 carbon rims
Carbon has also become the first choice of rim material for DT Swiss. Weight, steering precision and stability are almost unbeatable, and the Swiss use a new production technology. This means that the outer layers consist of continuous fiber strands and are not cut up. It also compresses the carbon fabric very strongly. This avoids weak points from the outset and takes durability to a new level. The vulnerable rim flange in particular resists punctures even better. In addition, the rim does not need to be reworked or painted after removal from the mold, but has the final finish immediately. After production, a new, patent-pending test procedure, which enables a layer-by-layer inspection, guarantees that only perfect rims are delivered. So you can always rely on your material.
Of course, the inner width is dimensioned in such a way that even wide tires get an optimally round shape and ensure better grip and high comfort. The rim flange is also hookless and therefore offers the best tubeless compatibility.
DT Swiss 180 Classic hub
No compromises have been made in the center of the wheelset, where a classy DT Swiss 180 hub with a classic design spins. This allows J-bend spokes to be installed, which measurably increase stiffness. The perfectly sealed ceramic bearings are legendary. In addition to incredibly smooth running, they guarantee a long service life and low maintenance.
Revolite spokes with Pro Lock nipples
The DT Swiss Revolite spokes combine low weight and durability. During the development process, various versions were extensively tested until the final shape and choice of raw materials were finalized. The result is a cross-shaped cross-section flattened on one side, which is considered the best compromise between the above-mentioned properties. In addition, a special, patented cold forging process ensures that the material is compacted and thus also increases stability. Nevertheless, the spokes can also withstand harder impacts, which makes them ideal for use on mountain bikes.
In the Pro Lock process, a patented two-component adhesive is injected into the nipple thread, enabling the construction of extremely durable wheels. As soon as the nipples are screwed in, the adhesive is activated and hardens completely at room temperature after approx. 6 - 7 hours. Repeated re-centering is still possible without any problems, although the adhesive strength decreases slightly each time.
Technical data:
Area of application: Enduro
Wheel size: 27,5" (ETRTO: 30-584)
Rim type: clincher (clincher and folding tires)
Brake type: for disc brakes only
Brake rotor mount: 6-hole
Hub material: Aluminum, steel
Rim material: UD carbon
Spoke material: Stainless steel
Inner width: 30 mm
Outer width: 37 mm
Rim height: 22 mm
Offset: yes
Number of holes: 28 hole
Axle standard: 15x110 mm Boost thru axle
Bearings: 2x industrial ceramic ball bearings
Spokes: DT Swiss Revolite J-Bend
Lacing pattern: 3-crossed
tubeless compatible: yes
recommended tire width: n/a
max. air pressure: with inner tube: n/a
maximum system weight: 130 kg (rider, bike, clothing and possibly luggage)
Valve hole: Presta valve (SV)
Color rim / finish: black / UD Carbon matt
Color decor: silver-white
Color hubs: black with silver decals
Weight according to manufacturer: 734g
Weight self-weighed: 746g
Scope of delivery:
1x DT SWISS front wheel 27.5" EXC 1200 Classic 6-hole | 15x110 mm Boost incl. tubeless rim tape
1x tubeless valve
