DT SWISS Dropper Post D 232 One Carbon 27,2 mm | 60 mm | L1 Trigger with Handlebar Clamp

%

Description

DT SWISS seat post D 232 One Carbon 27.2 mm | 60mm | L1 trigger with clamp

Cross Country courses, with their constant alternation of technical climbs and steep descents, require skills in both directions, and not just from the driver. The D 232 ONE telescopic seat post developed specifically for Cross Country is not only super light and reliable thanks to UPSIDEDROP technology, but also easy to maintain.
The support can be dismantled and cleaned almost without tools in just a few simple steps. The simple and robust construction, only a steel spring is used instead of an air spring, which is compressed by the driver's own weight, underlines the well thought-out construction. With its 60 mm stroke, the D 232 ONE Vario seat post offers the pilot two selectable modes: extended and retracted and, thanks to the carbon seat clamp and the carbon seat tube, weighs only 369 g.

Technical specifications:

Area of intended use : cross country, marathon
Materials: carbon, aluminum
Material screws: titanium
Operation: DT Swiss L1 trigger with clamp, with internal control (internal cable routing)
Diameter: 27.2mm
Length (A): 400 mm (extended | without control to saddle frame) 445 mm including control
Adjustment range (B): 60 mm
Minimum insertion depth (C): 90 mm (135 mm incl. valve/control)
min. possible usable height (D): 210 mm
max. possible usable height (E): 310 mm (upper edge of seat clamp to lower edge of saddle frame)
Offset: 0mm
Compatibility seat stays: round (7x7 mm) and oval (7x10 mm)
Functionality: mechanical (steel spring)
Features: UPSIDEDROP technology, reliable and easy to maintain
ASTM classification: ASTM 3
max. system weight: 130 kg (incl. clothing, luggage)
Color: Black

Weight according to the manufacturer: 369g (30.9 mm, only support without control)

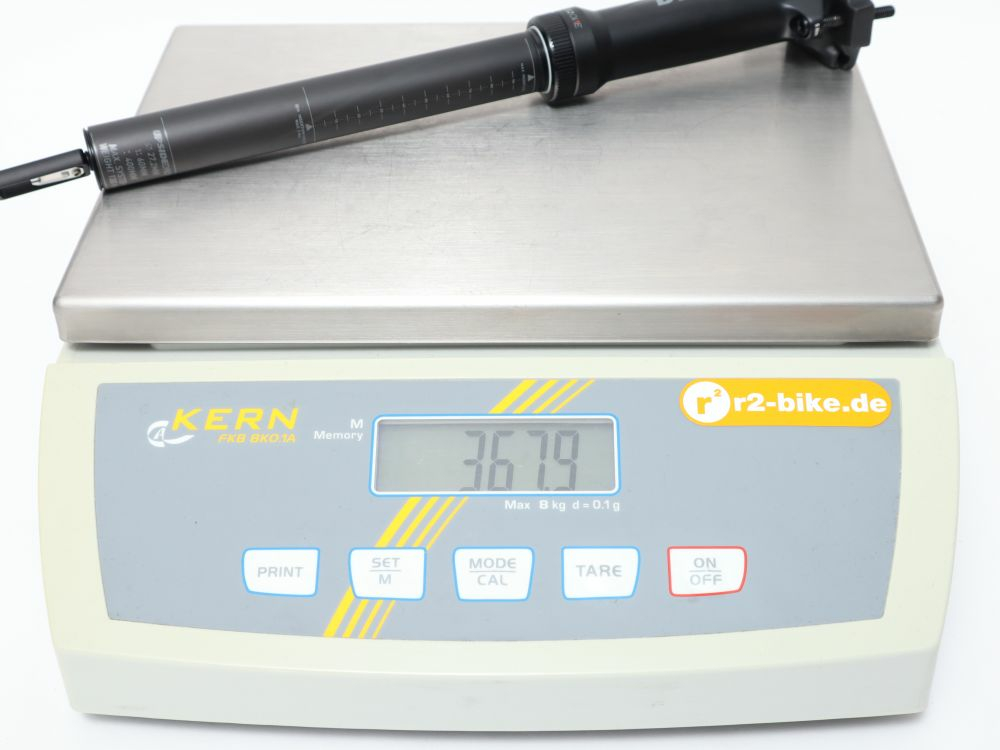

Weight weighed: 368g (27.2 mm, only support without control

Scope of delivery:

1x DT SWISS seat post D 232 One Carbon 27.2 mm | 60mm
1x DT SWISS L1 trigger with clamp
1x carbon assembly paste
1x Bowden cable
1x outer shell
End cap for shift cable and outer housing

Note: The internally controlled seat post ensures a tidy look on your bike - please make sure that seat posts with internal cable routing can be installed on your frame.

GTIN:

7613052324296

MPN:

D232ODKAAECA35550S
