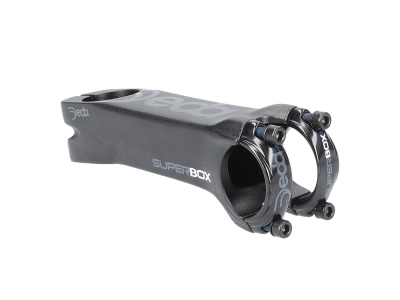

DEDA Stem Superbox V2 DCR 31,7 mm 130 mm

Description
PDF (1)

DEDA Superbox V2 DCR 31.7 mm stem

The Superbox V2 DCR offers you four different options for all common cable routing solutions on the market. In combination with Deda handlebars with DCR system (completely internal cable routing), it offers you the ideal solution for bikes with fully integrated cable routing. In addition to fully integrated routing, there is also the option of semi-internal cable routing (S-DCR) using a cover under the stem, which allows the stem to be installed, maintained and adjusted without having to disconnect electronic cables or hydraulic lines.
The stem is compatible with standard 1 1/8" fork steerer tubes and head tubes with an upper bearing diameter of 46 mm or 56 mm. The scope of delivery includes special spacers with integrated cable ducts. These spacers and the nylon cover are slotted so that they can be easily opened and adjusted without having to remove all cables.
Thanks to innovative 3D forging technology and a flat design, the stem also impresses in terms of aerodynamics. With the new 60, 70 and 80 mm length options, the Superbox is also the perfect choice for mountain bikes and gravel bikes with internal cable routing.

Technical data:

Area of application: road bike, gravel, MTB
Material: Aluminum 6061
Bolts: Steel
Handlebar mount: Ø 31.7 mm (also compatible with Ø 31.8 mm)
Fork steerer diameter: 1 1/8"
Lengths: 60 mm, 70 mm, 80 mm, 90 mm, 100 mm, 110 mm, 120 mm, 130 mm, 140 mm, 150 mm or 160 mm
Angle: -8°
Clamp height steerer tube: 31 mm
Handlebar clamping width: 42 mm with S-DC cover
Tool holder: 4 mm hexagon socket
max. permissible torque: 5 Nm
Finish: black matt, glossy black logos
Color: black

Weight according to manufacturer: 175g (110 mm)
Weight self-weighed:

Scope of delivery:

1x DEDA Superbox V2 DCR 31.7 mm stem
1x S-DC cover (for cable routing under the stem)
1x Ahead cap including aluminum screw
2x 10 mm spacers
2x 5 mm spacers
1x top cover for 56 mm headsets
1x top cover for 46 mm headsets
1x headset cone
1x D-Clip Aero Cover

GTIN:

8055774368735

MPN:

SBOX-V2-130
