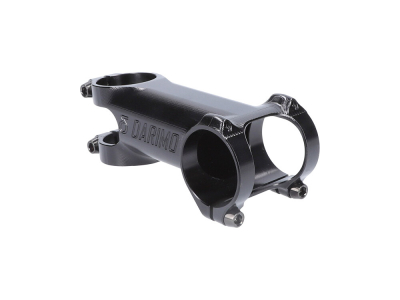

DARIMO Stem IX4AL black | -6° 100 mm

Description

DARIMO stem IX4AL black | -6°

The well-known Darimo IX2AL is the perfect stem for (almost) everyone who loves aluminum stems and still wants to do without every unnecessary gram on the bike. Unfortunately, friends of the Dropbar have not been able to use this stem until now. Now, however, Darimo has come up with the IX4AL and, thanks to a removable front plate, it finally allows the dropbar to be used. You have to look twice to see that the handlebars are held in place by 4 bolts? That was the aim of the developers at Darimo. While sturdy M4 titanium bolts are used in the lower section of the front plate, small, discreet M3 grub screws are used at the top. They blend harmoniously into the chic design of the stem.
At just 76g with a length of 80 mm, this stem is a real flyweight. Anyone who wants to build an ultra-light bike should consider this stem.
But how do the Spaniards manage to produce such a flyweight? The clever minds from Valencia have done a lot of tinkering and save material wherever they can. But of course they also pay attention to safety and rigidity. For the latter, the design plays a particularly important role. The wide front plate increases the stiffness in the clamping area and reduces the surface pressure on the handlebars. The large contact area (24 cm²) makes it stiffer than heavier stems. Ultimately, this stem impresses with its impressive design and will be a real highlight on your bike.

NOTE: It is essential to follow the instructions for the product! Torques must be strictly adhered to. If you do not have the necessary specialist knowledge or tools for correct installation, the installation must be carried out by a specialist workshop with the appropriate knowledge.

Technical data:

Area of application: Road bike, gravel, cyclocross, MTB (cross country, marathon)
Stem material: 7075 T6 aluminum
Bolt material: Titanium
Handlebar clamp Ø: 31.8 mm
Steerer tube diameter: 1 1/8"
Lengths: 50, 60, 70, 80, 90, 100, 110, 120 or 130 mm
Angle: -6°
Steerer clamp height: 38 mm
Handlebar clamping width: 48 mm
Tool holder: 4 mm hexagon socket, 2 mm hexagon socket
Max. permissible torque: 3.5 Nm (for M4 bolts), 1 Nm (for M3 bolts)
Weight limit: max. 90 kg (rider + clothing + luggage)
Finish: black anodized
Color: black

Weight according to manufacturer: 75g (80 mm)
Weight self-weighed: 76g (80 mm)

Scope of delivery: 1x DARIMO stem IX4AL black | -6°

NOTE: The handlebars shown are for illustrative purposes only and are not included in the scope of delivery.
