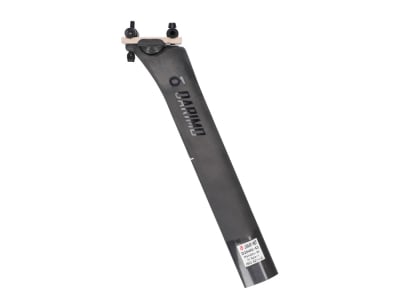

DARIMO Seatpost for Colnago Y1RS | UD matt | black | -7.5 mm offset | Aero 280 mm

New

Description

DARIMO seatpost for Colnago Y1RS | UD matt | black | -7.5 mm offset | Aero

Are you looking for a weight-optimized seatpost for your Colnago Y1RS? The Spanish lightweight construction specialists from Darimo have the right offer for you. All parts of the handmade seatposts are optimized to achieve a sensationally low weight of 114g with a length of 260 mm. The tube itself consists of asymmetrically arranged layers (bidirectional and unidirectional) of carbon, which are laminated by hand. The layer structure is always adapted to the loads occurring on the seatpost and varies in the arrangement and number of layers.

The clamping head is suitable for all standard saddle racks. From 7 mm round to 7x9 mm oval, everything is securely clamped.

The Darimo T1 Aero seatpost has passed the ISO 4210 standard test. The rider's weight limit including clothing and luggage is 90 kg.

Technical data:

Area of application: Road bike
Material: Carbon, titanium, aluminum
Compatibility Frame: Colnago Y1RS
Seatpost compatibility: Round (7x7 mm) or oval (7x9 mm)
Length (A): 210 mm to 300 mm (available in 10 mm increments)
Minimum insertion depth (B): according to Colnago manufacturer specifications & 3 mm space between the lower end of the seatpost and the stop in the seat tube
Offset / setback: 7.5 mm
Weight limit: max. 90 kg
Finish: UD matt | Decals black (are interchangeable and optionally available)

Weight according to manufacturer: 114g (260 mm)
Weight as weighed: 114g (260 mm)

The weights may deviate +/-3% from the manufacturer's specification.

Scope of delivery:

1x DARIMO seatpost for Colnago Y1RS | UD matt | black | -7.5 mm offset | Aero
1x mounting gel Fibergrip for carbon

Notes: To select the correct length of the Darimo seatpost, you need a Colnago seatpost of the correct length. Colnago recommends at least 3 mm distance between the lower end of the seatpost and the stop in the seat tube. Measure dimension A on your removed Colnago seatpost (penultimate picture). If this measurement does not correspond to any available length, please choose the next shorter length. The Darimo seatpost is available in 10 mm increments. Thanks to the adjustment range of 12 mm in the Y1RS, your saddle height can be optimally adjusted.

The instructions for the product must be observed. Torques must be strictly adhered to. The clamping range must be observed and the seat post must NOT be shortened. Use in mounting stands (and similar clamps) is expressly not recommended.

more  always opened

Manufacturer information

Darimo Carbon Fiber

Carrer dels Fornillers 7

46160 Valencia

Valencianische Gemeinschaft

Spanien

http://darimo.eu/

SKU:	81139-008
Item weight:	114g

335,29 €

MSRP: 399,00 €

incl. 0% VAT , Plus

Length

in about 2 - 3 weeks

in about 2 - 3 weeks

We await the item in about 2 - 3 weeks from our supplier and send it as quickly as possible to you. About 2 - 6 business days later (in the EU) it will arrives you.
more shipping info: Link »
