DARIMO seatpost T1 Loop | 3K matt | 30.9 mm
Introducing the Darimo carbon seatpost T1 Loop.
Darimo has optimized all parts of this seatpost to achieve a sensationally low weight (90g at 31.6 mm diameter / 400 mm length) with maximum stability. The tube itself consists of asymmetrically arranged layers (bidirectional and unidirectional) of carbon, which are laminated by hand. The layer structure is always adapted to the loads occurring on the seatpost and varies in the arrangement and number of layers.

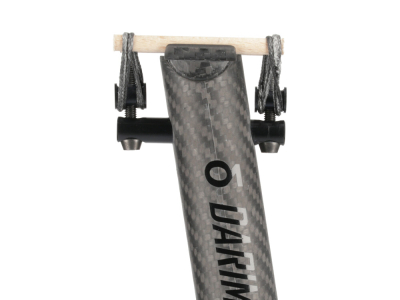

The loops are made of almost indestructible Dyneema fibers and are placed around special barrel nuts to gently fix even high-quality carbon rails. It doesn't matter whether your saddle frame has round rails or high oval rails. With the loop system, you can easily mount all types of rails on the perfectly crafted carbon rocker.
The Darimo T1 seatpost has passed the ISO 4210 standard test. The rider's weight limit including clothing and luggage is 90 kg.
NOTE: The instructions for the product must be observed! Torques must be strictly adhered to. The clamping range must be observed and the seat post must NOT be shortened.
Technical data:
Area of application: MTB, road bike, cross, gravel
Material: carbon, titanium, aluminum, Dynema
Diameter: 30.9 mm
Length: 250 mm, 300 mm, 350 mm or 400 mm
Insertion depth: varies according to post length
Weight limit: max. 90 kg
Finish: 3K matt | Decals black
Weights: (manufacturer's specifications - 27.2 mm / 31.6 mm)
250 mm - 62g / 61
300 mm - 71g / 72
350 mm - 80g / 81
400 mm - 89g / 90
The weights may deviate +/-3% from the specification!!!
Prop length | extension length min - max
250 mm | min. 100 mm - max. 175 mm
300 mm | min. 145 mm - max. 220 mm
350 mm | min. 190 mm - max. 265 mm
400 mm | min. 235 mm - max. 310 mm
Scope of delivery:
1x DARIMO seatpost T1 Loop | 3K matt | 30.9 mm
1x mounting gel Fibergrip for carbon
Note: The decals are over the paint and can therefore be removed or replaced with different colors.
