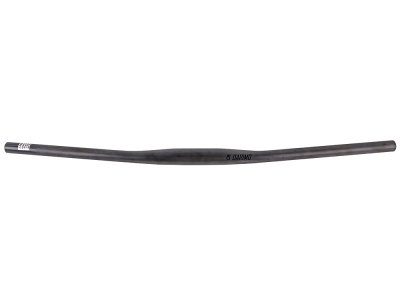

DARIMO handlebar carbon MTB flat bar 9° | 31.8 mm UD matt / black
The Darimo Carbon MTB handlebars are the result of countless calculations and tests until breakage to achieve a record weight of 98g at 740 mm width.
This handlebar is made entirely of carbon with a unique arrangement and orientation of the individual layers to achieve the best weight-stiffness-durability ratio. This type of production can only be realized by 100% manual work as each width has its own, load-appropriate arrangement of the layers. The handlebars passed the ISO 4210 test, but there is still a weight limit of 90 kg for the rider including clothing and luggage. In tests up to breakage, loads beyond the 350 kg mark were necessary.
The 31.8 mm handlebar clamp is suitable for current oversize stems. Darimo recommends a 4-bolt clamp with a maximum width of 50 mm. Furthermore, all Darimo handlebars have a reinforcement at the handlebar end to minimize the risk of damage in the event of a fall.
Note: The instructions for the product must be observed! Torques must be strictly adhered to. The clamping range must be observed and the handlebars must NOT be shortened.
Technical data:
Area of application: Cross country, marathon, tour
Material: Carbon
Handlebar clamp: 31.8 mm (oversized)
Handlebar width: 680, 700, 720, 740 mm or 760 mm
Rise: 0 mm
Backsweep: 9°
Upsweep: 0°
Shortenable: no
Barend compatible: no
max. permissible torque for brake clamps: 2 Nm (with SRAM Level 1 Nm)
max. permissible torque for stem clamp: 3.5 Nm (for Intend, Extralite, Newmen Evo 2 Nm)
E-bike compatibility: no
Rider weight: max. 90 kg (incl. clothing and possibly luggage)
Finish: UD matt | Decals black
Weight according to manufacturer: 98g (740 mm)
Weight self-weighed: 88g (700 mm)
Scope of delivery:
1x DARIMO handlebar carbon MTB flat bar 9° | 31.8 mm UD matt / black
1x mounting gel Fibergrip for carbon
Note: The decals are over the paint and can therefore be removed.
