Description

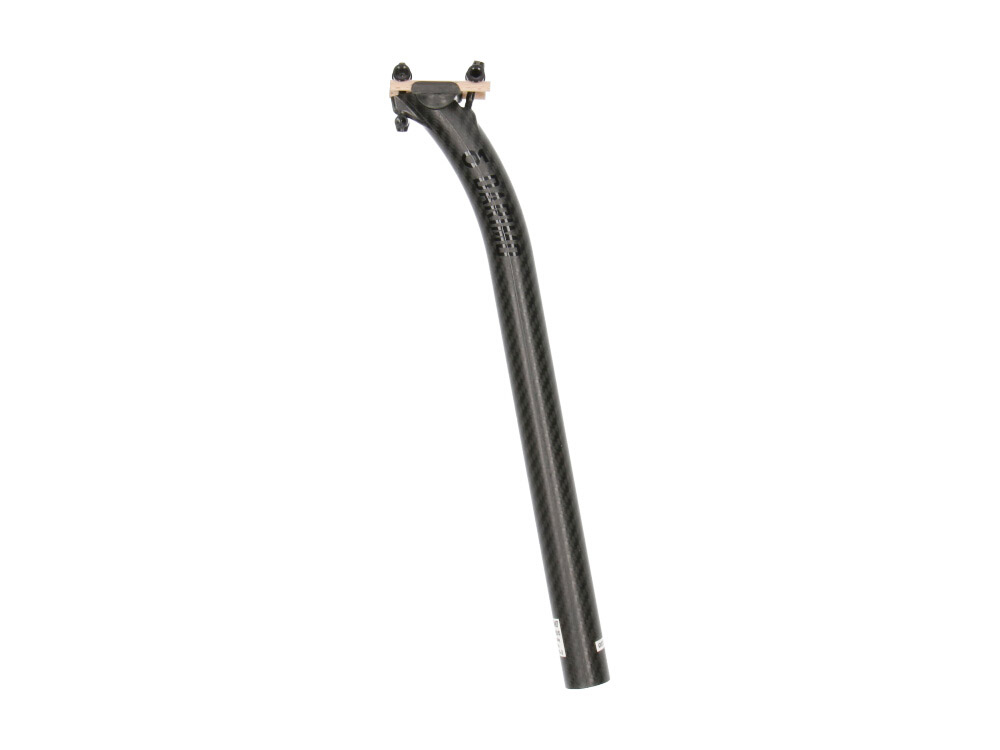

DARIMO CARBON seat post T2 SB 25 mm offset | 3K glossy / black | 30.9mm
Here it is, the ultra-light Darimo carbon seat post T2 SB with 25 mm offset.
Darimo has optimized all parts of this seat post in order to achieve a sensationally low weight with maximum stability at the same time. The tube itself consists of several asymmetrically arranged layers of carbon. The respective orientation and strength of these was implemented after extensive analyzes and many practical tests. The different lengths and the specific loads that occur were also taken into account, so that each seat post has its own individual structure. The comfort aspect also played an important role in the development. So it is able to soften violent shocks from the ground.
All parts of the clamp have large contact surfaces, no sharp corners or edges and are suitable for any type of saddle rail, whether round or oval.
The Darimo T2 SB seat post has passed the ISO 4210 standard test and is approved for riders up to 90 kg (including clothing and backpack).
HINTS:
The enclosed instructions must be observed. The maximum torques and the clamping range must be observed. In addition, the seat post CANNOT be shortened.
Technical specifications:
intended use : Road bike, MTB Cross Country
Material: 3K carbon
Material screws: Titanium Ti Gr5
Diameter: 30.9mm
Length (A): 250mm, 300mm, 350mm or 400mm
Minimum insertion depth (B): 75 mm (250 mm), 80 mm (300 mm), 85 mm (350 mm), 90 mm (400 mm)
min. possible usable height (C): 100 mm (250 mm), 145 mm (300 mm), 190 mm (350 mm), 235 mm (400 mm)
max. possible usable height (D): 175 mm (250 mm), 220 mm (300 mm), 265 mm (350 mm), 310 mm (400 mm) (top edge of seat clamp to bottom edge of seat frame)
Offset: 25mm
Compatibility seat stays: round (7x7 mm) and oval (7x9 mm), (note screw length)
max. driver weight: 90 kg (driver, clothing and possibly luggage)
Finish: 3K carbon glossy
Color / logos: black / black matt
Weight according to the manufacturer: 115g (400 mm)
Weight weighed:
Scope of delivery: 1x DARIMO CARBON seat post T2 SB 25 mm offset | 3K glossy / black | 30.9mm
