Description

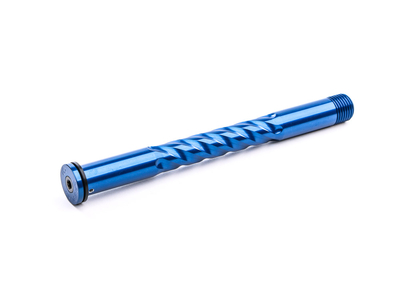

CRUEL COMPONENTS thru axle for Rock Shox | 15x110mm Boost
Cruel thru-axles are made of high-strength aluminum 7075 T6 (Ergal) to ensure high rigidity!
The ultra-light axle are completely CNC milled and then anodized to improve durability and increase the surface hardness.
In order to further improve the product, an innovative clamping system was developed in which the tool holder is reinforced with a titanium insert. At the same time, this closes the opening that is created when the axle is hollow drilled and thus also reduces the weight.
Technical specifications:
Material: aluminum 7075 T6 (Ergal), titanium grade 5
Hub standard: QR15 (15 mm thru axle with 110 mm over locknut dimension)
Compatibility: Rockshox suspension forks with 15x110 mm Boost hub standard
Axle length: 158.0 mm
Axle diameter: 15 mm
Thread Length: 12mm
Thread pitch: M15x1.5
Contact surface, not thread side: flat

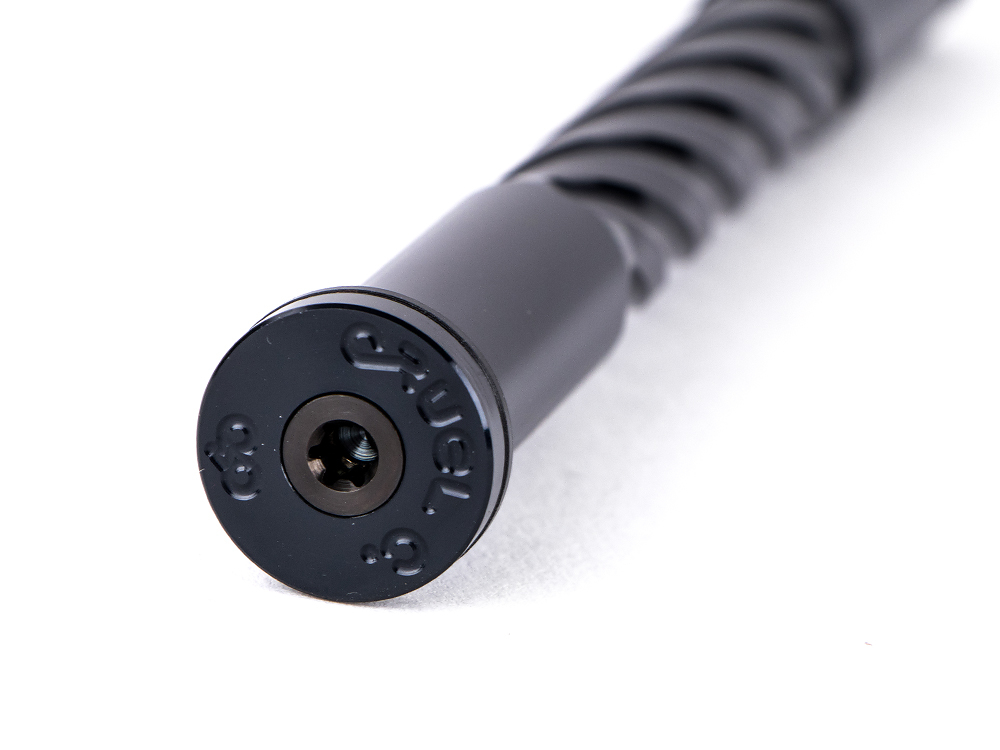

Tool holder: Torx T25
max. permissible torque: 8 Nm
Colour: black, red, gold, blue or bright green
Weight: 35.7g
Scope of delivery: 1x Cruel Components thru axle + plastic washer
