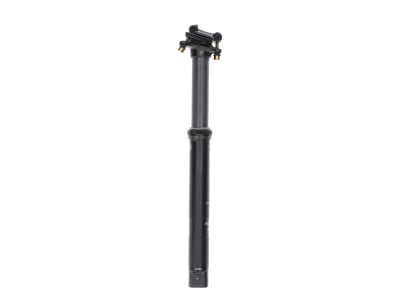

CRANKBROTHERS Seatpost Highline 11 Dropper 60 mm | Carbon
With the Highline 11 seat post, Crankbrothers relies on a low overall weight thanks to the highest quality materials. When developing this seat post, the focus was on a wide range of uses - so the seat post is available in adjustment ranges between 60 mm and 170 mm. Equipped with a carbon shaft, a carbon head and titanium screws, the Highline 11 saves up to 100 grams compared to the Highline 7 without having to compromise on features or function. This makes the Highline 11 the ideal seat post for those riders who would like to save a few grams on their bike - regardless of whether they are an XC racer, gravel connoisseur or enduro enthusiast.
For a fast extension speed, the Crankbrothers also uses the closed hydraulic IFP cartridge on the Highline 11. The Quick Connect mechanism in the support base ensures easy installation of the internally routed Bowden cable of the remote lever. The high-quality Jagwire cable housing and Igus plain bearings included in the scope of delivery ensure extremely low-friction operation in conjunction with the linear control of the Quick Connect connection. Due to the smaller height of the support base and the resulting reduced insertion depth, the support has wider frame compatibility.
The built-in polymer seals from the market leader Trellerborg make the support extremely durable and ensure play-free function. Convinced by the quality of the supports, Crankbrothers offers a 4-year guarantee for the Higline 11. The 2-screw clamping head with quick release allows for uncomplicated saddle assembly and fine adjustment.
Technical data:
intended use : Gravel, Cross Country, All-Mountain, Enduro
Material: Carbon (shaft and head), aluminum 7075-T6 (body)
Screw material: titanium
Diameter: 30.9mm | 31.6mm
Length: 419 mm (when extended; including Quick Connect connection)
Operation: Remote lever on the handlebar (not included in delivery), internal control of the seat post (cable internal routing)
Adjustment range: 60 mm
Offset: 0mm
min. insertion: 100 mm
max. insertion: 305 mm (including Quick Connect connection; please note with curved seat tube or small frame)
max. possible usable height: 292 mm (upper edge of saddle clamp to lower edge of saddle frame)
Compatibility saddle rails: round (7x7 mm) and oval (7x10 mm)
How it works: hydraulic IFP cartridge
max. rider weight: kA
Color: black, gold decals and titanium screws
Weight according to manufacturer: 425g (30.9 mm)
Weight weighed: 421g (30.9 mm, 100 mm adjustment range without accessories)
Scope of delivery:
1x Crankbrothers telescopic seat post
1x Jagwire Bowden cable and cable cover
Note: This seat post has an internal control. This means that the cable has to be routed through the frame (seat tube). Please make sure that your frame is intended for the use of supports with internal controls!
