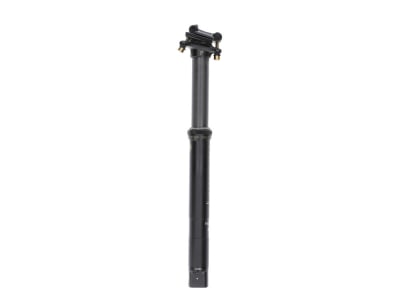

CRANKBROTHERS seat post Highline 11 Dropper 125 mm | carbon
With the Highline 11 seat post, Crankbrothers relies on a low overall weight thanks to the highest quality materials. When developing this seat post, the focus was on a wide range of applications - the seat post is therefore available in adjustment ranges between 60 mm and 170 mm. Equipped with a carbon shaft, a carbon head and titanium screws, the Highline 11 saves up to 100 grams compared to the Highline 7 without having to compromise on properties or functionality. This makes the Highline 11 the ideal seat post for those riders who would like to save a gram or two on their bike - regardless of whether they are XC racers, gravel connoisseurs or enduro enthusiasts.
For a fast extension speed, the Crankbrothers also uses the closed hydraulic IFP cartridge for the Highline 11. The Quick Connect mechanism in the support foot ensures easy installation of the remote lever's internally routed Bowden cable. The high-quality Jagwire cable housing and Igus plain bearing included in the scope of delivery, in conjunction with the linear control of the Quick Connect connection, ensure extremely low-friction operation. Due to the lower overall height of the support foot and the resulting reduced insertion depth, the support has broader frame compatibility.
The built-in polymer seals from the market leader Trellerborg make the support extremely durable and ensure play-free operation. Convinced of the quality of the posts, Crankbrothers gives a 4-year guarantee for the Higline 11. The 2-screw clamp head with quick-release fastener allows for uncomplicated saddle mounting and fine adjustment.
Technical specifications:
Area of intended use : Gravel, Cross Country, All-Mountain, Enduro
Material: carbon (shaft and head), aluminum 7075-T6 (body)
Material screws: titanium
Diameter: 30.9mm | 31.6mm
Length: 417 mm (when extended; including Quick Connect connector)
Operation: remote lever on the handlebars (not included), internal control of the seat post (internal cable routing)
Adjustment range: 125 mm
Offset: 0mm
min. insertion: 100 mm
max. insertion: 240 mm (including Quick Connect connection; please note with a curved seat tube or small frame)
max. possible usable height: 290 mm (upper edge of seat clamp to lower edge of saddle frame)
Compatibility seat stays: round (7x7 mm) and oval (7x10 mm)
How it works: hydraulic IFP cartridge
max. rider weight: not specified
Colour: black, gold decals and titanium screws
Weight according to the manufacturer: 429g (30.9 mm), 449g (31.6 mm)
Weight weighed: 421g (30.9 mm, 100 mm adjustment range without accessories)
Scope of delivery:
1x Crankbrothers telescopic seat post
1x Jagwire Bowden cable and cable housing
Note: This seat post has an internal control. This means that the cable must be routed through the frame (seat tube). Please make sure that your frame is designed for the use of posts with internal control!
