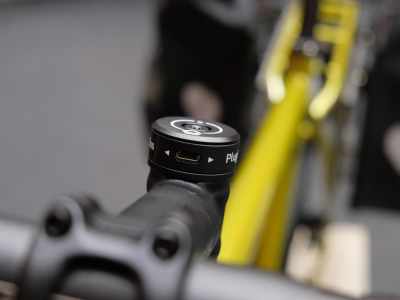

CINQ USB charger Plug6 Plus
The latest generation of power supply. The Plug6 Plus provides sufficient power even under the most difficult charging conditions - whether on a long trip around the world or in everyday life.
The new design makes the Plug6 head a real eye-catcher and the improved rotary door closure makes operating the USB port a real pleasure. The protection cap supplied as standard also protects it from external influences. If you look under the hood, the Plug6 Plus offers much more. The fully encapsulated electronics reliably protects the plug against environmental influences. It automatically detects when the light is switched on and acts dynamically with the end device to get the optimal charging current out of the dynamo. Even when driving very slowly and even when stationary, the Power Module provides enough power so that the end device continues to be charged. This means that even power-hungry devices can be buffered with up to 1200mA.
Protected according to IP65
In order to ensure the function of the Plug6 Plus even under the most adverse conditions, both the PowerModule and the Top Cap were subjected to numerous tests in an external test laboratory. The result: Dust and heavy rain can no longer harm the Plug6 Plus, as it meets the requirements of the IP65 protection class.
Integrated power module
The integrated PowerModule makes the excess power usable when driving fast and prevents the power supply from being cut off even at low speeds or stops.
Auto Light Switch
The Plug5 Plus automatically detects whether the light is switched on in addition to a device to be charged. If the latter is the case, the entire power is fed to the lighting to ensure your maximum safety. You don't have to switch or pay attention to anything, just enjoy your tour.
Intelligent device management
The intelligent charging circuit decides with the consumer how much charging current flows. Simply connect your device and the Plug5 Plus will take care of the rest.
Smart charge
The maximum power that can be permanently drawn from the USB socket is a combination of the wheel size, the dynamo used and your driving speed. The Plug Plus takes these variables into account and continuously optimizes the load behavior and thus the power consumption of the dynamo.
Auto Power Save
If the state of charge of the integrated PowerModule falls below a value that is safe for operation, the PowerModule's power-saving mode is activated. This ensures that the buffer function can be used for as long as possible.
Technical specifications:
Material: aluminum, plastic
Compatibility fork: 1 1/8" above, continuous or tapered, shaft inner diameter 24.5 mm
Connection: USB-C standard
Power input: AC power from hub dynamo
Max Output Current: 1.2A
Dimensions power module (L x Ø): 160 x 24 mm
Battery Capacity: 1100mAh
Operating range: -15°C to 60°C
Waterproof: protected to IP65
Color: Black
Weight according to the manufacturer: 195g
Weight weighed: 197g

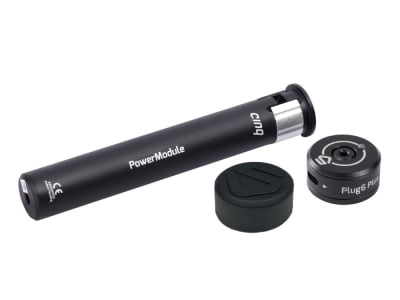

Scope of delivery:
1x Plug6 Plus with USB-C socket
1x ahead screw M6
1x power module with connection cable
1x connecting cable to the hub dynamo 100 cm, open end
operation manual
Note: Your fork must have an inner shaft diameter of 24.1 mm. There must be sufficient shaft length and the fork must be open at the bottom or alternatively have internal cable routing.
