CARBON-TI Rear Hub X-Hub SP 6-Hole X-12 XD for 12x142 mm Thru Axle | Freehub SRAM XD

Item number:
28413
Product weight:
187 g
Manufacturers:

397,50 €
Finanzieren ab 21 EUR / Monat
Mehr Informationen zum Ratenkauf
MSRP: 434,05 €
You save 8,42%, that is 36,55 €

including 16% VAT. , excl. Shipping costs / shipping time info

available from stock
Colour
hole drill

There are variations of this item. Please select the variation you wish.


Product details

Description

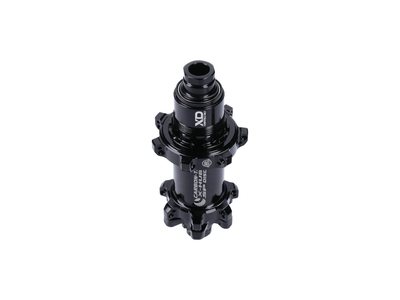

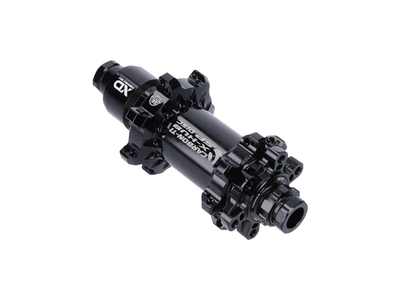

CARBON-TI rear hub X-Hub SP 6-hole X-12 XD for 12x142 mm thru axle | Freewheel SRAM XD

Products from Carbon-Ti stand for lightweight construction without recklessness and compromises in rigidity. Finally, all parts are driven and tested in the World Cup. This guarantees the end user high quality and reliability. All Carbon-Ti hubs are developed and produced in Italy.

The hub body of the X-Hub SP rear wheel hub is CNC machined and turns around a multi-butted aluminum axis. Due to the diameter of 17 mm, this gives the hub considerable rigidity. Four high-quality, double-sealed ball bearings from the bearing specialist SKF are installed, which ensure a permanently silky smooth running. The axle play can be easily adjusted from the outside by hand. The new Pre-Load setting ring is now easier to use.
The freewheel engages over four pawls, each with three teeth, in a 56-speed titanium toothed ring in order to be able to withstand the performance of performance-oriented drivers. Weighing well below 200g, the X-Hub is one of the lightest rear wheel hubs on the market.
The hub is designed for straightpull spokes. These can generate a little more stiffness. The bigger advantage is somewhere else. The weak point of a curved spoke is the head with its bend. If a spoke breaks, it is usually at this point. Spokes in particular do not have this weak point.

We would be happy to make you an offer for a complete custom wheelset with the CARBON TI hub, spokes and rims of your choice. Please send us an email to wheels@r2-bike.de !


Technical specifications:

intended use : MTB, Gravel, Road
Material: aluminum 7075-T6, Grade5 titanium, stainless steel
Material freewheel body: aluminum
axle type : 12x142 mm thru axle
Number of holes: 24, 28 or 32 holes
Brake disc mount: 6-hole
Freewheel compatibility: 11-, 12-speed SRAM XD
Freewheel type: 4 pawls, 56 grids
bearing : 4x industrial bearings (1x 61903-2RS, 3x 61803-2RS)
Spoke type: straightpull
Spoke tension: 1275 N.
maximum rider weight: no weight limit

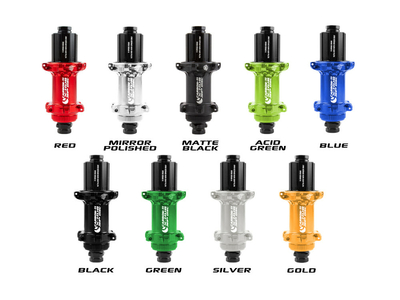

Color: black, red, gold, blue, silver, green, poison green, silver polished or black matt

Weight according to the manufacturer: 183g (24 holes), 185g (28 holes), 187g (32 holes)
Weight weighed: 187g (28 holes)


Scope of delivery: 1x CARBON-TI rear hub X-Hub SP 6-hole X-12 XD for 12x142 mm thru axle | Freewheel SRAM XD

PDF

Manuals / Downloads

Manual Eng/Ita
