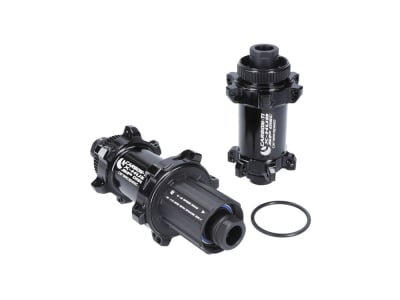

CARBON-TI hub set X-Hub SP Ceramicspeed Center Lock for 12x100 | 12x142 mm thru axle | 24 hole | black | freehub Shimano Road
Products from Carbon-Ti stand for lightweight construction without compromising on stiffness. After all, all parts are ridden and tested in the World Cup. This guarantees the end user high quality and reliability. All Carbon-Ti hubs are developed and produced in Italy.
The hub bodies of the X-Hub SP hubs are elaborately CNC-milled and rotate around multi-butted aluminum axles. With a diameter of 17 mm, these provide the hub with a high degree of rigidity. In the Ceramicspeed version, the exclusive ceramic bearings from the Danish bearing specialists are installed. In addition to their durability, the bearings help you save a few watts thanks to their silky smooth running. The axle play can be easily adjusted by hand from the outside. The freewheel of the rear hub engages via four pawls, each with three teeth, in a 56-fold titanium ring gear to withstand the acceleration of performance-oriented riders.
The hubs are designed for straight pull spokes. These can generate a little more stiffness. However, the greater advantage lies elsewhere: the weak point of a bent spoke is the head with its bend. If a spoke breaks, it is usually at this point, whereas straight-pull spokes do not have this weak point. In addition, weight can be saved because shorter versions can be used.
We will be happy to provide you with a quote for a complete custom wheelset with CARBON TI hubs, spokes and rims of your choice. Please send us an e-mail to [email protected]!
Technical data front hub:
Application: road bike, gravel, cyclocross
Material: Aluminum 7075-T6, stainless steel
Axle standard: 12 x 100 mm thru axle
Number of holes: 24 holes
Brake disc mount: Center Lock
Bearings: 2x Ceramicspeed bearings (2x 61803 2RS1)
Seal: Labyrinth rubber seals
Spoke type: Straightpull straight
Spoke tension: 1176 N (recommended), 1270 N (maximum)
Maximum system weight: without weight limit
Color: black
Weight according to manufacturer: 89g
Weight self-weighed: 89g
Technical data rear hub:
Application: road bike, gravel, cyclocross
Material: Aluminum 7075-T6, Grade5 titanium, stainless steel
Axle standard: 12x142 mm thru axle
Number of holes: 24 holes
Brake rotor mount: Center Lock
Freehub compatibility: 11-speed Shimano Road, 9-, 10-, 11-speed Shimano MTB (only with cassette spacer)
Freehub type: 4 pawls, 56 ratchets
Bearing: 4x Ceramicspeed bearings (1x 61903-2RS1, 3x 61803-2RS1)
Spoke type: Straightpull (straight)
Spoke tension: 1176 N (recommended), 1270 N (maximum)
Maximum system weight: without weight limit
Color: black
Weight according to manufacturer: 182g
Weight self-weighed: 192g
Scope of delivery:
1x CARBON-TI front hub X-Hub SP Ceramicspeed Center Lock for 12x100 mm thru axle | 24 holes | black
1x CARBON-TI rear hub X-Hub SP Ceramicspeed Center Lock X-12 for 12x142 mm thru axle | 24 holes | black | freehub Shimano/SRAM Road
1x 1.8 mm spacer 9-, 10-, 11-speed Shimano MTB cassettes
