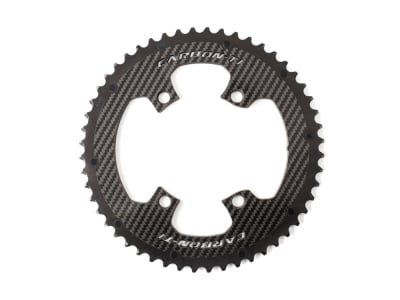

CARBON-TI Chainring X-CarboRing EVO 4-Arm LK 110 asymmetric | Dura Ace FC-R9200 & Ultegra FC-R8100 | outer Ring 55 Teeth

Description

CARBON-TI chainring X-CarboRing EVO 4-Arm LK 110 asymmetric | Dura Ace FC-R9200 & Ultegra FC-R8100 | Outer

The round X-CarboRing EVO is the latest development in super-light chainrings, combining a material mix based on 3K carbon fiber with a 7075-T6 aluminium alloy for the sprocket. High-quality grade 5 titanium is used for the shifting ramps. Designed for racing, this is the best choice of material for durability and weight.
The back of the carbon chainring is artfully milled to save the last few grams and enable perfect shifting behavior. The use of aluminum as the tooth material ensures a long service life.
The chainring is designed for the new Shimano 12-speed drivetrains Dura Ace FC-R9200, Ultegra FC-R8100. 11-speed drivetrains are also compatible with the chainrings and SRM Origin and Rotor INSpider cranks are suitable for use. You can find the matching Carbon-Ti X-Cover chainring bolts in our store.

Note: For optimum shifting performance, CARBON-TI recommends the combination with the inner CARBON-TI X-CarboRing chainrings in the gradations 55/40, 55/38, 54/40, 54/38, 52/36 or 50/34. The use of other combinations is not recommended.
The assembly shown is an example.

Technical data:

Area of application: Road, Triathlon
Material: Carbon, aluminum 7075-T6, titanium
Technology: -
Bolt circle: 110 mm (compact)
Mounting: 4-arm spider asymmetric
Number of teeth: 50, 52, 54 or 55 teeth
Compatibility cranks: Shimano Dura Ace FC-9200, Ultegra FC-8100, SRM Origin 9000, Rotor INSpider
Chain compatibility: 11-speed, 12-speed (except SRAM AXS Flattop)
Mounting: External
Chainline: Standard
Offset: none
Adjustment options: -
Range (ovalization): -
Timing (force application): -
Color: 3K-Carbon black

Weight according to manufacturer: 97g (50 teeth), 104g (52 teeth), 114g (54 teeth), 134g (55 teeth)
Weight self-weighed: 98g (50 teeth), 134g (55 teeth)

Scope of delivery: 1x CARBON-TI chainring X-CarboRing EVO LK 110 4-arm asymmetric | Dura Ace FC-R9200 & Ultegra FC-R8100 | Outer

GTIN:

8056249531050

MPN:

XCRE55I110DA9200
