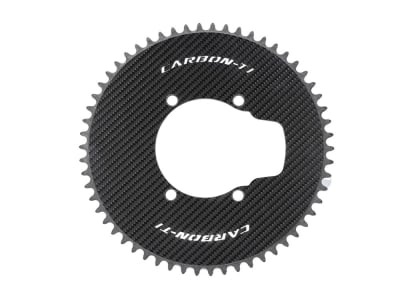

CARBON-TI Chainring X-Aeroring for Dura Ace FC-R9200 & Ultegra FC-R8100 | 4-arm LK 110 asymmetric | 64 Teeth

New

Description

CARBON-TI chainring X-Aeroring for Dura Ace FC-R9200 & Ultegra FC-R8100 | 4-arm LK 110 asymmetric

The Grand Tours of recent years in particular have shown how decisive a strong result in the time trial can be in securing a podium place in the overall classification. As the official sponsor of UAE Team Emirates, it was important for Carbon-Ti to contribute to a successful result in the battle against time. The result is an aero chainring specially optimized for top speeds, made solely from 3K carbon fibres - developed in the wind tunnel and tested in the fastest races of the World Tour.

The Carbon-Ti aero chainring is a masterpiece of Italian milling and is one of the fastest full carbon chainrings money can buy. Designed as a single sprocket, the oversized chainring simplifies your drivetrain, results in a more efficient chainline and offers less surface area for the wind to attack than a 2x crankset. With just one ring and no derailleur, the weight of your time trial bike is also significantly reduced. The last few grams are also saved by milling out the back of the carbon chainring. The narrow-width tooth profile prevents the chain from jumping off, even at high wattages or when shifting under load.
Suitable chainring bolts that integrate the chainring perfectly, both aerodynamically and visually, can be found in our store.

Note: The chainrings should be run in with a new, clean and well-lubricated chain. In addition, carbon fiber teeth require special care and intensive maintenance to maximize their service life. For greater reliability, we recommend the use of a chain guide.
Please make sure that the chainring in the selected version is compatible with your bike before placing an order. The maximum diameter is 242, 250, 258 or 264 millimetres, depending on the version.

Technical data:

Area of application: Time trial, triathlon
Material: Carbon
Bolt circle: 110 mm
Mounting: 4-arm spider asymmetric
Number of teeth: 58 teeth, 60 teeth, 62 teeth, 64 teeth
Compatibility cranks: Shimano Dura Ace FC-9200, Shimano Dura Ace FC-9200-P, Shimano Ultegra FC-8100, Shimano Ultegra FC-8100-P, Shimano 105 FC-R7100
Chain compatibility: 12-speed (except SRAM AXS Flattop)
Mounting: External
Chainline: Standard
Offset: none
Diameter: Diameter: 242 mm (58 teeth), 250 mm (60 teeth), 258 mm (62 teeth), 264 mm (64 teeth)
Finish: 3K carbon, glossy
Color: black

Weight according to manufacturer: 200g (58 teeth), 215g (60 teeth), 232g (62 teeth), 252g (64 teeth)
Weight as weighed: 200g (58 teeth)

Scope of delivery: 1x CARBON-TI chainring X-Aeroring for Dura Ace FC-R9200 & Ultegra FC-R8100 | 4-arm LK 110 asymmetrical

GTIN:

8056249531654

MPN:

XAR64I110DA9200

more  always opened

Manufacturer information

Carbon-Ti srl

Via Privata Giuseppe Castellini 2

25046 Cazzago S.Martino. Brescia

Italien

https://www.carbon-ti.com/

SKU:	72691-004
Item weight:	252g

330,00 €

incl. 19% VAT , Plus

Version

in about 2 - 3 months

in about 2 - 3 months

We await the item in about 2 - 3 months from our supplier and send it as quickly as possible to you. About 2 - 6 business days later (in the EU) it will arrives you.
more shipping info: Link »
