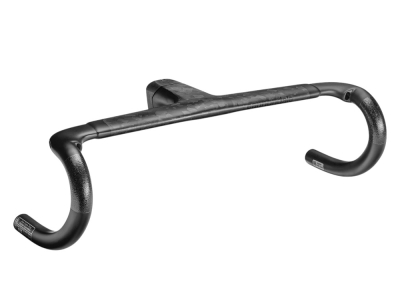

CANNONDALE stem/handlebar unit SystemBar R-One | 380 mm | ICR | Forged Carbon
Cannondale meets MOMODesign.
The Cannondale SystemBar R-One cockpit harmonizes looks and function. The one-piece construction offers low weight, stiffness and sets standards in aerodynamics.
The design language created by the Italian company MOMODesign shows that they can not only create perfect steering wheels. The design in combination with the stylish, technical Forged Carbon is a feast for the eyes.
The brake cables are completely concealed and run along the inside of the steerer tube into the frame or fork. Cannondale uses a special shape for the steerer tube called the Delta Steerer. It is derived from the formal language of the Greek letter. Despite the use of internal cable routing, this taper allows for a slim and aerodynamic head tube with a small windage area.
The ergonomics bring established values with them:
- Reach: 80 mm
- Drop: 130 mm
- Flare: 20 mm
- Stem angle: - 6°
A stem cover is integrated into the design language and elegantly conceals the stem clamp and the Ahead cap. Would you like to use a bike computer from Garmin or Wahoo? No problem, a computer holder is included in the scope of delivery and places the computer directly in front of the stem. With two different inlays, you immediately have the option of using your device. The result is an ingenious design language and precise control on the road.
ICR
This stands for internal cable routing.
This means that the cables can now be routed completely internally and hidden in the frame thanks to an elegant outlet. The trend towards complete integration is the focus of future bikes. The design language of the frames will be complex and organic at the same time.
NOTE: The instructions (QR code on the packaging, or PDF in the appendix) for the product must be observed! Torques must be strictly observed. If the necessary specialist knowledge or tools for correct installation are missing, the installation must be carried out by a specialist workshop with the appropriate knowledge.
NOTE: This cockpit is only to be used in conjunction with a fork that uses the Delta head tube standard! It is not compatible with mechanical or wired electronic groupsets. You can use the matching headset cover (K28052) if a C1 Conceal stem is already fitted to your Cannondale. Of course, we also offer the headset cover separately. You can find it under item number 73050.
Technical data:
Area of application: road bike, gravel, cyclocross
Material: Carbon
Compatibility: Only with Cannondale Delta steerer tube (installed on: SuperSix EVO Gen. 4 | SuperSix EVO CX / SE | SuperX 2025 | Synapse Neo / Allroad | Tesoro Neo Carbon)
Top link shape: aero
Lower link shape: compact
Steerer clamp: 1 1/8"
Cable routing: Internal Cable Routing (ICR)
Stem angle: - 6°
Stem length: 90 mm | 100 mm | 110 mm | 120 mm
Clamp height: 38.5 mm
Minimum insertion depth steerer tube: 30 mm
Max. torque on steerer tube: 5 Nm
max. torque attachments/grips: n.a.
Handlebar width top link (center - center): 380 mm
Handlebar width lower link (center - center): 400 mm
Reach: 80 mm
Drop: 130 mm
Flare: 20 mm
Sweep: n.a.
Backsweep: 0°
max. system weight: n/a
Finish: matt | Forged Carbon & UD Carbon
Color: black
Weight according to manufacturer: 375g
Weight self-weighed: 448g (cockpit only - 400 mm | 120 mm) | 54g (computer + GoPro mount) | 41g (spacer kit)
Scope of delivery:
1x Cannondale stem/handlebar unit SystemBar R-One | 380 mm | ICR | Forged Carbon
1x One Piece Drop Systembar stem cover (K28092)
1x Delta Round Ahead cap (K35003)
1x SystemBar R-One Computer Mount (CP1242U10OS)
1x GoPro mount
1x Garmin inlay
1x Wahoo Inlay
1x spacer set (1x 5mm | 2x 10mm | 2x 15mm)
1x SystemBar Delta Filler Pieces L+R (K3508310)
1x QR code (manual)
