Description

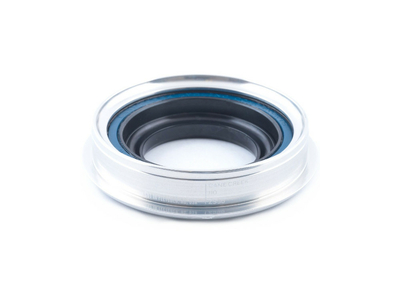

CANE CREEK Steering set base 40.ZS56 / 30 Bottom Conversion 1 1/8 "
Cane Creek's 40 series sets the benchmark for longevity, value and performance. Derived from the 110 series, the product line brings together all the necessities for uncompromising functionality - durable and lightweight.
The 40 series offers you a wide range of configuration by the availability of individual top and bottom parts. This makes it possible to use almost any standard of fork and control tube combination.
Technical specifications:
Material: 6061 T-6 aluminum (housing), steel (ball bearing, conical ring)
Construction: ahead, semi-integrated
Fork shaft: 1 1/8 "
SHIS: ZS56 / 30
Fitting size Ø: 56 mm
Insertion depth: 9 mm
External diameter: 62 mm
Overall height: 4 mm
bearing : blackened industrial ball bearings, double sealed
Color: Black
Weight: 84g (including cone ring)
Scope of delivery: 1x Cane Creek Steuersatz Unterteil incl. Cone ring
