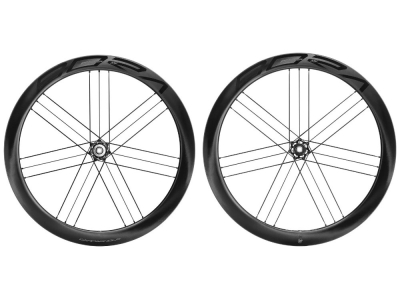

CAMPAGNOLO Wheel Set 28" Bora X 50 DB 2WF C27 | Shimano HG11

Description

CAMPAGNOLO Wheelset 28" Bora X 50 DB 2WF C27

The carbon wheelset for gravel use combines Campagnolo's technical precision with the ambition to set a new benchmark in the high-end segment even beyond perfect roads. With the Bora X, Campagnolo has succeeded in seamlessly transferring the racing qualities of the road to the gravel sector. For a riding experience that makes speed, control and efficiency tangible at every moment.

Innovative design and an exclusive manufacturing process give the wheelset its low weight, high torsional rigidity and impressive acceleration. Self-locking nipples are fully integrated into the rim profile, eliminating surfaces exposed to the wind and contributing to clear, aerodynamic lines. The ultra-light rim structure is the result of a special lamination process in which the carbon fibers are only joined at a single point. This creates a high-strength carbon monolith whose material efficiency also increases the agility of the wheelset. The precise weight balance of the valve on the opposite side of the rim ensures balanced concentricity. Campagnolo is also breaking new ground with the hubs: the aluminum constructions are based on the anatomy of joints. The spoke heads sit in a spherical hollow chamber, which allows them to move in a controlled manner under load. This solution prevents permanent material stresses and reduces load peaks so that the force applied is transferred efficiently and harmoniously to the ground. The system is complemented by the iconic G3 spoke system modified for gravel use, which uses a combination of aerodynamic blade spokes and elliptical spokes to achieve an optimum balance between airflow, stiffness and comfort. Center-Lock mounts for brake rotors, high-quality ceramic bearings and the patented Campagnolo freehub complete the system. Thanks to various freehub bodies, the wheelset is also fully compatible with SRAM or Shimano drivetrains.

Each wheel is handcrafted by a Campagnolo specialist in Italy and trimmed to perfection using electronically controlled instruments. This process guarantees maximum performance and reliability.

Technical data:

Area of application: Gravel
Wheel size: 28" (ETRTO: 622 x 27)
Rim type: clincher (clincher and folding tires)
Brake type: Disc brake
Brake disc mount: Center Lock
Hub material: Aluminum
Rim material: Carbon
Spokes material: Stainless steel
Inner width: 27 mm
Outer width: 33 mm
Rim height: 50 mm
Number of holes: 21
Spokes: Combination of aerodynamic blade spokes and elliptical spokes
Spoking pattern: iconic G3 spoking
Axle standard front: 12 x 100 mm thru axle
Rear axle standard: 12 x 142 mm thru axle
Front bearings: Campagnolo CULT ceramic bearings
Rear bearing: Campagnolo CULT ceramic bearings
Freewheel: Campagnolo N3W, Shimano HG11, Shimano MS12, SRAM XDR
Freewheel type: pawl freewheel
tubeless compatible: yes
recommended tire width: 35 mm to 52 mm
max. air pressure: 5.7 bar (35 mm), 5.2 bar (41 mm), 4.1 bar (52 mm)
max. air pressure tubeless: 4.4 bar (35 mm), 3.9 bar (41 mm), 3.1 bar (52 mm)
maximum system weight: n.a.
valve hole: 7 mm Ø
Color rims: black
Finish rims: glossy
Color hubs: black
Finish hubs: glossy

Weight according to manufacturer: 1430g
Weight self-weighed: 1465g (Shimano HG11)

Scope of delivery:

1x Campagnolo Bora X 50 DB 2WF C27 front wheel
1x Campagnolo Bora X 50 DB 2WF C27 rear wheel
2x Campagnolo wheel bags
1x Campagnolo accessory bag
2x Tubeless Vertile
2x tire levers
1x user manual
