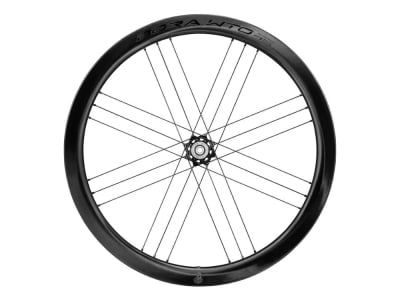

CAMPAGNOLO rear wheel 28" Bora WTO 45 DB 2WF C23
The medium profile carbon wheelset is the epitome of elegance and an Italian masterpiece. Experience a perfect balance of speed, maneuverability and stability. The best choice for anyone looking for an all-rounder.
Thanks to their innovative design and an exclusive manufacturing process, the wheels are particularly light with maximum aerodynamics. The profile of the rim is drop-shaped and significantly reduces overall resistance. The closed rim base improves rigidity and makes the rim extremely fast. With an inner width of 23 millimetres, the Bora wheelset underlines its versatility. The iconic G3 spoking gives the wheels a unique look that clearly identifies them as a Campagnolo product. Ultralight hubs with USB ceramic bearings round off the wheels perfectly. They have a center-lock brake rotor mount and are equipped with a pawl freehub. Thanks to different freehub bodies, the wheelset is also compatible with SRAM or Shimano drivetrains.
Each wheel is handcrafted by a Campagnolo specialist in Italy and trimmed to perfection using electronically controlled instruments. This process guarantees maximum performance and reliability.
2-Way-Fit (2WF)
Thanks to the closed 2WF rim profile, the Bora WTO wheels are suitable for tubeless use without the need to fit rim tape. However, they can also be ridden conventionally with a tube.
H.U.L.C. Carbon
The Bora WTO wheels are made from the special handmade and ultra-light H.U.L.C. carbon fibers. In combination with the C-LUX finish, which does not require painting, and the newly developed hubs, the wheels are over 100 grams lighter than the previous version.
Technical data:
Area of application: Road
Wheel size: 28" (ETRTO: 622 x 23)
Rim type: clincher (clincher and folding tires)
Brake type: Disc brake
Brake disc mount: Center Lock
Hub material: Aluminum
Rim material: Carbon
Spoke material: Stainless steel
Inner width: 23 mm
Outer width: 29 mm
Rim height: 45 mm
Number of holes: 24
Spokes: Stainless steel spokes, aerodynamic-elliptical cross-section
Lacing pattern: iconic G3 lacing
Axle standard: 12x142 mm thru axle
Bearings: 4x USB ceramic ball bearings
Freehub: Campagnolo N3W 11-, 12-, 13-speed (with included adapter), SRAM XDR 12-speed or Shimano 11-/12-speed Road
Freehub type: pawl freehub
tubeless compatible: yes
recommended tire width: 28 mm to 35 mm
max. air pressure: 28 mm - 7 bar, 35 mm - 5.8 bar
max. air pressure tubeless: 28 mm - 6.3 bar, 35 mm - 4.5 bar
maximum system weight: n.a.
Valve hole: 7 mm Ø
Color rims: black
Finish rims: glossy
Color hubs: black
Finish hubs: glossy
Weight according to manufacturer: 1405g (wheelset)
Weight as weighed: 770g (with Shimano Road freehub body)
Scope of delivery:
1x Campagnolo Bora WTO 45 DB 2WF C23 rear wheel
1x Campagnolo wheel bag
1x Campagnolo accessory bag
1x tubeless valve
2x tire levers
1x user manual
