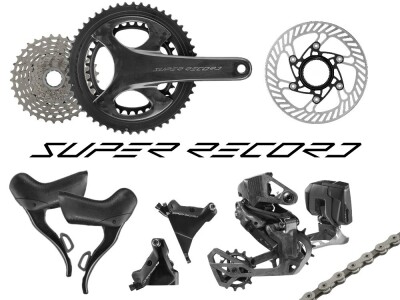

CAMPAGNOLO Groupset 2x13 ROAD Super Record 13
Campagnolo introduced the first Super Record groupset in 1973 - a consistent further development of the Record groupset that set new standards in terms of performance, lightweight construction and exclusivity. More than 50 years later, Campagnolo is continuing this tradition with the Super Record 13 platform and taking it to a new level: as the fastest electronic groupset currently on the market, it not only offers the widest range of gear ratios, but also marks the beginning of a redefinition of the brand identity - developed with the aim of setting a new benchmark in the high-end segment.
Crank
A technical masterpiece with an unmistakable design language: the Super Record 13 crank attracts everyone's attention. This is thanks to the successful combination of matt aluminum chainrings and carbon crankarms with their iconic, shiny finish. The deliberately visible carbon structure underlines the majestic elegance of the Italian set. Thanks to seven different chainring combinations - 45/29, 48/32, 50/34, 52/36, 53/39, 54/39 and 55/39 - the setup can be tailored to individual requirements. In combination with four different cassettes, this results in the most versatile and complete gear range currently available on the market. A new surface treatment noticeably increases the wear resistance of the chainrings. In addition, the redesigned tooth profiles enable even faster and more precise chain changes between the chainrings. Campagnolo remains true to its Ultra-Torque technology in the crankshaft system: two titanium half-shafts, firmly connected to the crankarms, mesh via Hirth splines and are securely fixed in place by a central oversize bolt. This design not only enables millimeter-precise positioning, but also reduces the space required at the side at axle height - and thus prevents unwanted contact between the ankle and crank. Crank arm lengths of 165, 170, 172.5 and 175 mm are available. With a Q-factor of 148.5 mm, the crank is optimally designed for efficient, ergonomic pedaling. Smooth running is ensured by ceramic bearings pressed onto the shaft, which together with the QCK-Tech bearing shells provide excellent protection against water and dirt. The wide range of QCK-Tech cups and bottom brackets ensures compatibility with all current bottom bracket standards.
Cassette
The cassette with one more sprocket: Made of steel and constructed in several parts, the Super Record 13 cassette guarantees maximum durability. With 13 closely spaced gear steps and minimal sprocket jumps, it offers a first-class riding experience for all those who value an optimum cadence in every situation. Building on its experience with the Ekar gravel groupset, Campagnolo has further reduced the spacing and thickness of the sprockets. This made it possible to integrate an additional sprocket with identical cassette dimensions to the 12-speed groupset. Homogeneous gear changes enable a constant cadence and are therefore crucial for efficient riding and controlled power delivery. Instead of energy-sapping gear jumps, the pedaling remains fluid, which is a clear advantage, especially over long distances. There is a choice of four cassette ratios, two starting with a 10-tooth sprocket (10-29 and 10-33) and two with 11 teeth (11-32 and 11-36). The system thus covers a wide range of gear ratios for a wide variety of route profiles. All cassette variants are compatible with the proven Campagnolo N3W freehub body. Due to the unchanged overall width, no special freehub body is required, as the standard N3W offers enough space for 13 sprockets as well as for a smallest sprocket with only ten teeth.
Chain
The Super Record 13 chain is a central component in the precisely tuned drivetrain system and was developed to ensure maximum efficiency and shifting precision. Behind the seemingly technical simplicity lies a sophisticated design that harmonizes perfectly with the new standards of the groupset. Even under heavy loads, the chain impresses with reliable performance, as our experience with the Ekar C13 has already impressively demonstrated. With a width of just 4.9 mm, achieved through narrower link spacing and flat, perforated pins, the chain enables fast, smooth and quiet shifting while taking up little space. The use of hollow pins not only saves every superfluous gram, but also achieves the perfect balance between lightness and resilience. A finely crafted detail that remains invisible at first glance, but can be felt every meter of the way. The C-Link locking system makes it easier to open and close the chain, which significantly simplifies maintenance and care without compromising on durability or longevity. Wrapped in a deep shine, the black chrome finish not only gives the C13 an elegant, high-quality look, but also increases wear resistance and reduces noise when riding. The newly engraved logo fits seamlessly into the visual line of the Super Record 13 groupset and underlines the design consistency and attention to detail.
Rear derailleur
A rear derailleur with record performance: Campagnolo sets a new standard for shifting speed with the fundamentally redesigned rear derailleur unit of the Super Record 13. At the heart of this groundbreaking development is an optimized movement path of the chain on the sprockets, which makes every shifting movement as direct, fluid and fast as possible. The result: a complete shifting process through all 13 gears is faster than with all electronic 12-speed groupsets from the competition - despite an additional sprocket. Specifically, the Campagnolo rear derailleur only needs 2.1 seconds to shift up and 1.9 seconds to shift down. Especially in competition, this precision can make the difference between winning and placing. Two specially developed derailleur pulleys, each with 14 teeth and a differentiated profile, minimize the friction of the chain links as they pass through the derailleur cage and reduce the load on the ceramic bearings of the upper pulley. The larger diameter of the lower pulley also guarantees constant chain tension. Despite its unusually aggressive appearance for Campagnolo, the carbon and aluminum rear derailleur blends in surprisingly harmoniously with the otherwise majestically elegant design language of the entire group. Compared to the Super Record Wireless, the right-hand protrusion of the rear derailleur has been reduced by 25 %, which significantly improves aerodynamics and integration on the frame. A removable battery unit supplies the completely wireless system with energy for up to 750 kilometers. If the power does run out unintentionally on the road, the rear derailleur can be moved manually to the desired position to continue the ride comfortably to the destination. The battery is charged either directly on the bike or on the go at any charging station using a USB cable with a magnetically attached charging connection. The charging status can be checked at any time via the mode button on the rear derailleur or via the MyCampy app 3.0.
Derailleur
Maximum compatibility with minimum weight: The front derailleur body made of monolithic technopolymer with added carbon powder is not only lighter than its predecessor from the Super Record Wireless groupset, but also offers more clearance on the rear wheel and thus takes account of the trend towards ever wider tires. Thanks to the revised carbon guide plate, the front derailleur now supports an extended chain tension range of 29 to 55 teeth. A removable battery unit supplies the completely wireless system with energy for up to 750 kilometers. The battery is charged either directly on the bike or on the move at any charging station using a USB cable with a magnetically fixed charging connection. The charge status can be checked at any time using the mode button on the derailleur or via the MyCampy 3.0 app.
Shift/brake lever
With seven chainring combinations, four cassette variants and the innovative 2x13 drivetrain system, the Super Record 13 sets new standards in terms of gear range and flexibility. In order to be able to control all 26 gears precisely from almost any grip position, Campagnolo is bringing back an iconic shifting element in the latest generation of the Ergopower shift/brake lever that evokes nostalgic emotions and makes the hearts of long-time fans of the traditional Italian brand beat faster - the thumb shifter. In addition to the new thumb shifter and the tried-and-tested operating element on the lever, the electronic control center impresses with an intelligently positioned button on the inside of the hoods, which can be freely assigned with individual functions. Before the next climb, simply change the data field page on your favorite speedometer or select a motivating song from the playlist on your smartphone - all without taking your hands off the handlebars. The MyCampy 3.0 app is used to program the desired options and the entire shifting logic for a setup that is perfectly tailored to the rider. Thanks to these technical innovations, Campagnolo manages the balancing act between tradition and modernity, guaranteeing maximum control. Anyone who covers long distances in the saddle quickly realizes how important an ergonomic contact point between hand and cockpit is to prevent discomfort in the hands and wrists. For this reason, Campagnolo has completely redesigned the Ergopower to meet the demands of modern cyclists in terms of comfort, function and handling. To this end, the hydraulic line has been extensively repositioned to create a large, flat contact surface that guarantees a comfortable and stable grip even over long distances. Special attention was also paid to the new design of the brake lever, which is made entirely of carbon and is shaped in such a way that the space under the hand rest is not compromised. Thanks to the optimized pivot point, the lever achieves a powerful, precise braking effect and is noticeably easier and more effective to operate from the hoods.
Brake
The disc brakes of the Super Record 13 also confirm Campagnolo's reputation as a manufacturer of particularly powerful braking systems. The brake caliper is made of forged aluminum and combines maximum stability with low weight. Titanium mounting bolts are used to further reduce weight. The pre-assembled brake hose is already filled with Campagnolo mineral oil and bled. This means that the brake calliper can be fitted directly and used immediately. Organic brake pads are included in the scope of delivery. They impress with their balanced braking performance with precise modulation, constant response and particularly quiet operation. Thanks to sound-absorbing carriers, vibrations are effectively reduced even on long descents.
Note: The set is supplied without mounting bolts.
Brake disk
A riveted, two-piece construction and angled ventilation cut-outs ensure excellent heat management and unlimited braking power even under critical conditions. The Campagnolo 03 AFS Center Lock rotors are made of durable stainless steel and have rounded edges, which minimizes the risk of injury and makes threading into the brake caliper a breeze.
Note: The set is supplied without lockrings.
All components of the electronic shifting group are made entirely in Italy - an expression of the highest precision, perfect craftsmanship and uncompromising reliability.
Technical data:
Area of application: Road
Gear steps: 2x13
Crank material: Carbon
Chainring material: Aluminum
Cassette material: Steel
Chain material: Steel
Material rear derailleur: carbon, aluminum
Front derailleur material: monolithic technopolymer, carbon, aluminum
Shift/brake lever material: carbon, aluminum, plastic, rubber
Brake material: Aluminum
Brake hose material: Plastic with Kevlar reinforcement
Brake rotor material: stainless steel, aluminum
Crank length: 165 mm, 170 mm, 172.5 mm, 175 mm
Chainring steps: 45/29 teeth, 48/32 teeth, 50/34 teeth, 52/36 teeth, 53/39 teeth, 54/39 teeth, 55/39 teeth
Cassette gradations: 10-29 teeth, 10-33 teeth, 11-32 teeth, 11-36 teeth
Crankshaft diameter: 25 mm (Campagnolo UltraTorque)
Chainring mount: 121 mm (large chainring), 88 mm (small chainring)
Brake type: hydraulic disc brake
Brake fluid: Campagnolo mineral oil
Brake mounting: Flat Mount
Disc mount: Center Lock
App: MyCampy 3.0 (Apple App Store, Google Play Store)
Freehub body compatibility: Campagnolo N3W
Bottom bracket compatibility: Campagnolo QCK-Tech
Weight according to manufacturer: n/a
Weight self-weighed: from 2210g (without brake rotors)
Scope of delivery:
1x Campagnolo Super Record 13 crankset 2-speed
1x Campagnolo Super Record 13 chainring set
1x Campagnolo Super Record 13 cassette
1x Campagnolo Super Record 13 chain C13
1x Campagnolo Super Record 13 rear derailleur
1x Campagnolo Super Record 13 front derailleur
1x Campagnolo Super Record 13 battery set incl. charging cable (rear derailleur & front derailleur)
2x Campagnolo Super Record 13 Ergopower shift/brake levers (left & right levers)
2x Campagnolo Super Record 13 brake calipers Flat Mount (front & rear brake)
(optional) 2x Campagnolo brake rotors 03 AFS Center Lock 160 mm
Please note the information on battery regulations.
