CAMPAGNOLO Groupset 2x13 ALL ROAD Super Record 13 X
In 1973 Campagnolo introduced the first Super Record groupset - a consistent further development of the Record groupset that set new standards in terms of performance, lightweight construction and exclusivity. More than 50 years later, Campagnolo is continuing this tradition with the Super Record 13 platform and opening up new terrain in the process: as the first electronic Campagnolo groupset for gravel routes at maximum speed, it combines robustness, precision and iconic design into a system that proves its performance not only on asphalt. Campagnolo Super Record 13 X is made for fast adventures on challenging trails and at the same time a further step in redefining the brand identity - developed with the aim of setting a benchmark in the high-end segment even off perfect roads.
Crank
A technical masterpiece with an unmistakable design language: the crank of the Super Record 13 groupset attracts everyone's attention. This is thanks to the successful combination of matt aluminum chainrings and carbon crankarms with their iconic, shiny finish. The deliberately visible carbon structure underlines the majestic elegance of the Italian set. Thanks to seven different chainring combinations - 45/29, 48/32, 50/34, 52/36, 53/39, 54/39 and 55/39 - the setup can be tailored to individual requirements. A new surface treatment noticeably increases the wear resistance of the chainrings. In addition, the redesigned tooth profiles enable even faster and more precise chain changes between the chainrings. Campagnolo remains true to its Ultra-Torque technology in the crankshaft system: two titanium half-shafts, firmly connected to the crankarms, mesh via Hirth splines and are securely fixed in place by a central oversize bolt. This design not only enables millimeter-precise positioning, but also reduces the space required at the side at axle height - and thus prevents unwanted contact between the ankle and crank. Crank arm lengths of 165, 170, 172.5 and 175 mm are available. With a Q-factor of 148.5 mm, the crank is optimally designed for efficient, ergonomic pedaling. Smooth running is ensured by ceramic bearings pressed onto the shaft, which together with the QCK-Tech bearing shells provide excellent protection against water and dirt. The wide range of QCK-Tech cups and bottom brackets ensures compatibility with all current bottom bracket standards.
Cassette
The cassette with one more sprocket: Made of steel and constructed in several parts, the Super Record 13 cassette guarantees maximum durability. With 13 closely spaced gear steps and minimal sprocket jumps, it offers a first-class riding experience for all those who value an optimum cadence in every situation. Building on its experience with the Ekar gravel groupset, Campagnolo has further reduced the spacing and thickness of the sprockets. This made it possible to integrate an additional sprocket with identical cassette dimensions to the 12-speed groupset. Homogeneous gear changes enable a constant cadence and are therefore crucial for efficient riding and controlled power delivery. Instead of energy-sapping gear jumps, the pedaling remains fluid, which is a clear advantage, especially over long distances. There is a choice of four cassette ratios, two starting with a 10-tooth sprocket (10-29 and 10-33) and two with 11 teeth (11-32 and 11-36). The system thus covers a wide range of gear ratios for a wide variety of route profiles. All cassette variants are compatible with the proven Campagnolo N3W freehub body. Due to the unchanged overall width, no special freehub body is required, as the standard N3W offers enough space for 13 sprockets as well as for a smallest sprocket with only ten teeth.
Chain
The Super Record 13 X chain is a central component in the precisely tuned drivetrain system and was developed to ensure maximum efficiency and shifting precision. Behind the seemingly technical simplicity lies a sophisticated design that harmonizes perfectly with the new standards of the groupset. Even under heavy loads, the chain impresses with reliable performance, as our experience with the Ekar C13 has already impressively demonstrated. With a width of just 4.9 mm, achieved through narrower link spacing and flat, perforated pins, the chain enables fast, smooth and quiet shifting while taking up little space. The use of solid pins specifically reinforces the construction to ensure high reliability and performance even under rough gravel conditions. The C-Link locking system makes it easier to open and close the chain, which significantly simplifies maintenance and care without compromising on durability or longevity. Wrapped in a deep shine, the black chrome finish not only gives the C13 an elegant, high-quality look, but also increases wear resistance and reduces noise when riding. The newly engraved logo fits seamlessly into the visual line of the Super Record 13-X groupset and underlines the design consistency and attention to detail.
Rear derailleur
A rear derailleur that remains precise even when the road stops: With the rear derailleur of the Super Record 13 platform, which has been completely developed for off-road performance, shifting on gravel roads becomes a decisive advantage - faster, more precise and quieter than any other gravel groupset. The new, compact architecture improves the aerodynamics of the rear derailleur and optimally aligns the system with the cassette sprockets so that every gear change is direct, fluid and efficient, regardless of the surface, speed or incline. At the heart of the further development is the Nano Clutch, an elegantly integrated clutch that guides the chain firmly and stably with every pedal rotation. This minimizes chain slap and prevents chain jumps even on rough trails. Despite its unusually aggressive appearance for Campagnolo, the carbon and aluminum rear derailleur blends in surprisingly harmoniously with the otherwise majestically elegant design language of the entire group. The rear derailleur has been specially developed for the 2x13-speed all-road configuration and is designed for cassettes with up to 36 teeth. It works with two idler pulleys, each with 14 teeth, whose different profiles guide the chain precisely. A ceramic bearing is used in the upper pulley for particularly low-friction operation, while the lower pulley is designed with classic bearings for maximum robustness and durability. It is compatible with all cassette and chainring options of the Road version. The removable battery unit supplies the completely wireless system with energy for up to 750 kilometers. Should the power run out unintentionally while riding, the rear derailleur can be moved manually to the desired position to continue the ride comfortably to the destination. The battery is charged either directly on the bike or on the go at any power source using a USB cable with a magnetically attached charging connection. The charge status can be checked at any time using the mode button on the rear derailleur or via the MyCampy app 3.0.
Front derailleur
Maximum compatibility with minimum weight: The front derailleur body made of monolithic technopolymer with added carbon powder is not only lighter than its predecessor from the Super Record Wireless groupset, but also offers more clearance on the rear wheel and thus takes into account the trend towards ever wider tires. Thanks to the revised carbon guide plate, the front derailleur now supports an extended chain tension range of 29 to 55 teeth. A removable battery unit supplies the completely wireless system with energy for up to 750 kilometers. The battery is charged either directly on the bike or on the go at any charging station using a USB cable with a magnetically attached charging port. The charge status can be checked at any time using the mode button on the derailleur or via the MyCampy 3.0 app.
Shift/brake lever
In order to be able to control all 26 gears precisely from almost any grip position, Campagnolo is bringing back an iconic shifting element in the latest generation of the Ergopower shift/brake lever that evokes nostalgic emotions and makes the hearts of long-time fans of the traditional Italian brand beat faster - the thumb shifter. In addition to the new thumb shifter and the tried-and-tested operating element on the lever, the electronic control center impresses with an intelligently positioned button on the inside of the hoods, which can be freely assigned with individual functions. Before the next climb, simply change the data field page on your favorite speedometer or select a motivating song from the playlist on your smartphone - all without taking your hands off the handlebars. The MyCampy 3.0 app is used to program the desired options and the entire shifting logic for a setup that is perfectly tailored to the rider. Thanks to these technical innovations, Campagnolo manages the balancing act between tradition and modernity, guaranteeing maximum control. Anyone who covers long distances in the saddle quickly realizes how important an ergonomic contact point between hand and cockpit is to prevent discomfort in the hands and wrists. For this reason, Campagnolo has completely redesigned the Ergopower to meet the demands of modern cyclists in terms of comfort, function and handling. To this end, the hydraulic line has been extensively repositioned to create a large, flat contact surface that guarantees a comfortable and stable grip even over long distances. Special attention was also paid to the new design of the brake lever, which is made entirely of carbon and is shaped in such a way that the space under the hand rest is not compromised. Thanks to the optimized pivot point, the lever achieves a powerful, precise braking effect and is noticeably easier and more effective to operate from the hoods.
Brake
The disc brakes on the Super Record 13 also confirm Campagnolo's reputation as a manufacturer of particularly powerful braking systems. The brake calliper is made of forged aluminum and combines maximum stability with low weight. The pre-assembled brake hose is already filled with Campagnolo mineral oil and bled. This means that the brake calliper can be fitted directly and used immediately. Organic brake pads are included in the scope of delivery. They impress with their balanced braking performance with precise modulation, constant response and particularly quiet operation. Thanks to the sound-absorbing carrier, vibrations are effectively reduced even on long descents Note: The set is supplied without mounting bolts.
Brake disk
A riveted, two-piece construction and angled ventilation cut-outs ensure excellent heat management and unlimited braking performance even under critical conditions. The Campagnolo 03 AFS Center Lock rotors are made of durable stainless steel and have rounded edges, which minimizes the risk of injury and makes threading them into the brake caliper a breeze.
All components of the electronic shifting group are made entirely in Italy - an expression of the highest precision, perfect craftsmanship and uncompromising reliability.
Technical data:
Area of application: Gravel
Gear steps: 2x13
Crank material: Carbon
Chainring material: Aluminum
Cassette material: Steel
Chain material: Steel
Material rear derailleur: carbon, aluminum
Front derailleur material: monolithic technopolymer, carbon, aluminum
Shift/brake lever material: carbon, aluminum, plastic, rubber
Brake material: Aluminum
Brake hose material: Plastic with Kevlar reinforcement
Brake rotor material: stainless steel, aluminum
Crank length: 165 mm, 170 mm, 172.5 mm, 175 mm
Chainring steps: 45/29 teeth, 48/32 teeth, 50/34 teeth, 52/36 teeth, 53/39 teeth, 54/39 teeth, 55/39 teeth
Cassette gradations: 10-29 teeth, 10-33 teeth, 11-32 teeth, 11-36 teeth
Crankshaft diameter: 25 mm (Campagnolo UltraTorque)
Chainring mount: 121 mm (large chainring), 88 mm (small chainring)
Brake type: hydraulic disc brake
Brake fluid: Campagnolo mineral oil
Brake mounting: Flat Mount
Disc mount: Center Lock
App: MyCampy 3.0 (Apple App Store, Google Play Store)
Freehub body compatibility: Campagnolo N3W
Bottom bracket compatibility: Campagnolo QCK-Tech
Weight according to manufacturer: n/a
Weight self-weighed: -

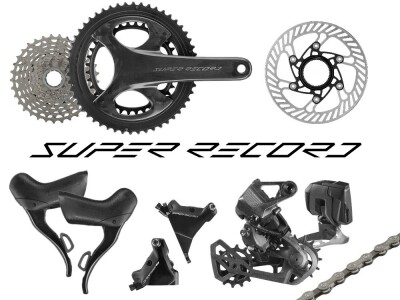

Scope of delivery:
1x Campagnolo Super Record 13 crankset 2-speed
1x Campagnolo Super Record 13 chainring set
1x Campagnolo Super Record 13 cassette
1x Campagnolo Super Record 13 X chain C13
1x Campagnolo Super Record 13 X rear derailleur ALL ROAD
1x Campagnolo Super Record 13 front derailleur
1x Campagnolo Super Record 13 battery set (rear derailleur & front derailleur)
2x Campagnolo Super Record 13 Ergopower shifters/brake levers (left & right levers)
2x Campagnolo brake calipers flat mount (front & rear brake)
(optional) 2x Campagnolo brake rotors 03 AFS Center Lock 160 mm
