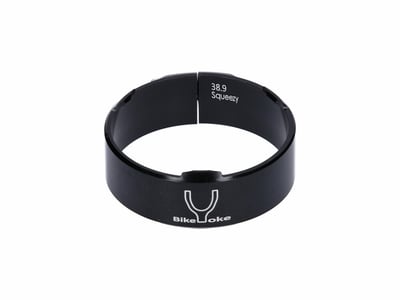

BIKEYOKE Seat Clamp Squeezy 39 | 38,9 mm

Description

BIKEYOKE saddle clamp Squeezy 39 | 38.9 mm

Squeezy - not just any other saddle clamp. True to BIKEYOKE's credo of always making something better and special, the new saddle clamp is not just any saddle clamp.

With the extremely elaborate and sophisticated CNC finish, the Titanium Torx screw and a weight of 8.8g Squeezy is not only extremely lightweight but also convinces in terms of function, appearance and durability.
Unlike other saddle clamps, Squeezy does not have a continuous waistband at the top. This collar serves only as an assembly aid, but stiffens the clamps unnecessarily at the top and thus prevents the most uniform possible clamping. Without a continuous collar, the clamp can nestle better and bring the clamping effect gently and evenly around the seat tube over the entire height of the saddle clamp. In conjunction with the compact design and sitting as close to the seat tube titanium clamping screw so same clamping forces can be achieved at less torque or higher clamping forces at the same torque. Particularly in connection with telescopic seat posts, a clamping force evenly distributed over the circumference can positively influence the function of the support.
To prevent the clamp from slipping down over the seat tube during assembly, Squeezy has three small slip stops.

Note: BikeYoke offers a highly detailed website with all information and videos on operation, specifications, operation, FAQ, service / maintenance, compatibility and problem solving. Use this link to go directly to more information.

Technical specifications:

Material clamp: 7075-T6 aluminum
Material screw: Titanium Ti-6Al-4V
Seat tube Ø: 38,9 mm
Construction height: 12.0 mm
Clamping height: 12.0 mm
max torque: 4.5 Nm
Tool holder: Torx T25
Color: Black

Weight according to manufacturer: 9g
Weight weighed: 9.2g

Scope of supply: 1x saddle clamp BIKEYOKE Squeezy 39 | 38.9 mm
