Description

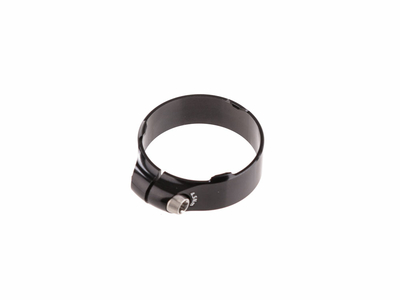

BIKEYOKE seat clamp Squeezy 36.4 | 36.4 mm
Squeezy - not just any other seat clamp. True to BIKEYOKE's credo of always making something better and special, the new seat clamp is not just any seat clamp.
With the extremely complex and noble CNC finish, the Titan-Torx screw and a weight of 8.8g, Squeezy is not only extremely light but also convinces with its function, appearance and durability.
Unlike other seat clamps, Squeezy does not have a continuous collar on the top. This collar only serves as an assembly aid, but unnecessarily stiffens the clamps on the upper edge and thus prevents clamping as evenly as possible. Without a continuous collar, the clamp can nestle better and introduce the clamping effect more gently and evenly around the seat tube over the entire height of the seat clamp. In conjunction with the compact design and the titanium clamping screw that is as close as possible to the seat tube, the same clamping forces can be achieved with less tightening torque or higher clamping forces with the same tightening torque. Especially in connection with telescopic seat posts, a clamping force evenly distributed over the circumference can have a positive effect on the function of the post.
To prevent the clamp from sliding down over the seat tube during assembly, Squeezy has three small slip stops.
Note: BikeYoke offers you an extremely detailed website with all information and videos on functionality, specifications, operation, FAQ, service / maintenance, compatibility and problem solving. Use this link to go directly to further information.
Technical specifications:
Material clamp: aluminum 7075-T6
Material screw: titanium Ti-6Al-4V
Seat tube Ø: 36.4 mm

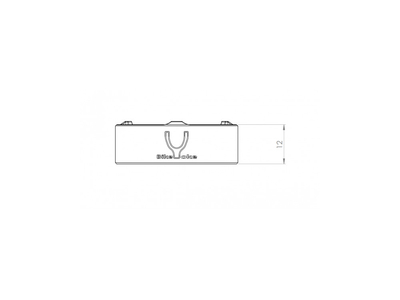

Height: 12.0 mm
Clamping height: 12.0 mm
max torque: 4.5 Nm
Tool holder: Torx T25
Color: Black
Weight according to the manufacturer: 9g

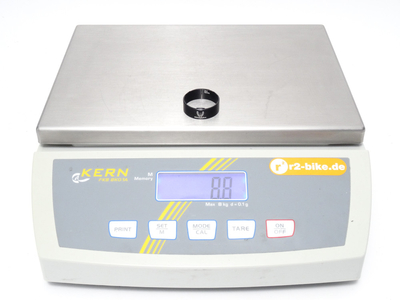

Weight weighed: 8.8g
Scope of delivery: 1x BikeYoke seat clamp Squeezy 36 | 36.4 mm
