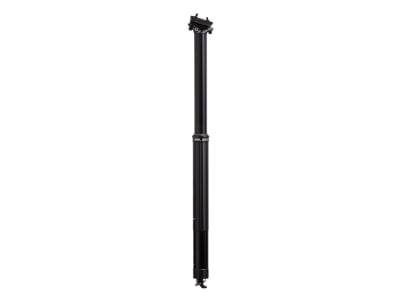

BIKEYOKE REVIVE MAX 3.0 seatpost without remote lever | 185 mm
Height-adjustable seatposts are one of those innovations that hardly anyone missed before they appeared - but now it's hard to imagine life without them. You get used to this practical additional function quickly and easily, at the touch of a button and the seatpost can be lowered or extended. In a matter of seconds, the bike can be converted from a climbing-friendly riding position to a downhill-oriented freedom of movement.
With the REVIVE 3.0, BikeYoke presents the consistent further development of its height-adjustable seatpost and can now draw on more than 10 years of experience, which makes the REVIVE 3.0 one of the most reliable height-adjustable seatposts. Small but subtle changes now make the REVIVE even better. Firstly, the overall length has been reduced by a total of 15 mm. On the one hand, this is due to the use of new clamping plates, which reduce the stack height by 5 mm. In addition, there is a new 360° rotatable foot section, which shortens the overall length of the seatpost by a further 10 mm. The telescopic tube unit of the REVIVE has also been updated. Thanks to the 3D forging process, the one-piece construction has even greater rigidity and strength.
Furthermore, the stroke can be reduced in 5 mm increments using the spacers supplied. This allows you to adapt your REVIVE optimally to you and your bike. Of course, the control system has been optimized. The new slide-on cable garbage can makes assembly much easier and the CNC-engineered linkage lever in conjunction with the friction-optimized cables ensure extremely smooth running - in all weather conditions. Finally, the developers also considered the mounting of the saddle: the new two-piece saddle bolts with integrated conical washer make mounting your saddle even easier.
With these harmonious details, the REVIVE stands out from the competition, shines with extreme user-friendliness and smart design, without neglecting the perfection of the product - an all-round successful product.
BikeYoke
More than 10 years of experience in the field of telescopic seatposts have gone into the design of the REVIVE and BikeYoke can rightly claim that there is no development team in the world with more experience in this field. They are aware of the weaknesses of the dropper posts currently available on the market and have set themselves the goal of making the REVIVE the most reliable and best hydraulic dropper post money can buy.
REVIVE MAX
125 mm, 160 mm, 185 mm or 213 mm infinitely adjustable lowering with low height, low weight and unrivaled smooth operation even at low temperatures make the REVIVE the reference. The REVIVE MAX is only available with a diameter of 34.9 mm.
Technology
The REVIVE is the first seatpost on the market to feature a patented REVIVE valve. This allows the seatpost to be deflated and thus reset in just a few seconds. The REVIVE contains a very simple hydraulic system based on the principle of an open oil bath. Other seatposts separate oil and air using a floating piston. The problem with using a floating piston is that a 100% seal must be guaranteed. Otherwise, air will migrate past this piston to the oil side and the seat post will start to bounce when extended. In practice, no seal can guarantee a long-term 100% seal, which is why many seatposts have to be serviced regularly to be vented.
The REVIVE does not require this separating piston and therefore guarantees defined and smooth operation. If air enters the oil bath, you can bleed it ultra-fast and just as easily via the seat post head without removing the post or saddle. Simply insert the 4 mm hexagon socket tool or bleed wrench(Quick-Reset-Lever), turn 30° to the stop, retract the post and turn the tool back - done.
Maintenance and service
The REVIVE is designed so that wear parts such as bearings and guide blocks can be completely replaced using standard tools and without any special knowledge. If you are not sure that you can carry out the service yourself, we recommend having it carried out by a qualified mechanic.
Note:
Note: The REVIVE 3.0 naturally works with all BIKEYOKE remotes, but the control has been specially adapted to the Triggy Alpha Long with its slightly longer paddle in terms of smoothness and feedback. BikeYoke offers you an extremely detailed website with all the information and videos on functionality, specifications, operation, FAQ, service/maintenance, compatibility and troubleshooting.
Features:
- new clamping plates ensure a 5 mm lower stack height
- the new 360° rotatable foot section shortens the overall length of the seat post by a further 10 mm by a further 10 mm
- the new slide-on cable tray makes installation easier
- friction-optimized cables consisting of a 3 mm outer sheath and a 0.9 mm cable pull ensures smooth operation
- the stroke can be reduced in 5 mm increments (4x5mm spacers included)
- the 3D forged, one-piece upper telescopic tube ensures increased rigidity and strength .stiffness and strength
- the CNC-engineered linkage lever generates even smoother control
- the two-piece saddle bolts with integrated conical washer make saddle mounting even easier
technical data:
Material: aluminum
Material bolts: stainless steel
Operation: Triggy (for 1-by drive) | 2-by (for 2-by drive), not included
Diameter:34.9 mm
Length (A): 501 mm (extended | activation (without Bowden cable) to saddle rack)
Adjustment range: 185 mm
Minimum insertion depth (D): 100 mm
min. Possible usable height (B): 222 mm (upper edge of saddle clamp to saddle frame)
max. possible usable height: 380 mm (top edge of seat clamp to saddle frame)
Offset: 0 mm
Seat post compatibility: round (7x7 mm) | oval (7x10 mm)
Function: pneumatic/hydraulic with mechanical control
max. rider weight : 115 kg ( including equipment) Rider weight: 115 kg (including equipment)
Color: black
Weight according to manufacturer: 630g
Weight self-weighed: n/a A.
Scope of delivery:
1x BikeYoke REVIVE MAX 3.0 seatpost | without remote lever
1x bleed key Quick-Reset-Lever
1x outer cover 1600 mm
1x inner cable 1800 mm
1x cable barrel
2x end cap outer cover
1x crimp sleeve inner cable
1x adapter for air filling
1x quick reset lever
4x 5mm spacer for stroke reduction
Note: The internally routed seatpost ensures a tidy look on your bike - please make sure that your frame allows the installation of seatposts with internal cable routing.
