Description
BIKE AHEAD COMPOSITES wheelset 28" Biturbo AERO | SRAM XDR Center Lock
The BITURBO AERO is Bike Ahead's first wheel that focuses on aerodynamics while being extremely lightweight.
With the BITURBO AERO you have an aerodynamic rim design which, with a high profile of 48.5 mm, modern 20 mm internal width and hooked clincher, is a perfect match for current racing bikes. Together with aerodynamics experts, the rim and the complete spoke profile with the hub area were perfected for an ideal flow of airflow. However, one outstanding ability of the beloved BITURBO ROAD remains. It is the driving stability in cross winds. A safety factor that was very important to Bike Ahead.
The light weight of 1,450g for the set speaks for itself, but does not show the particularly favorable mass distribution of this wheel. As with all other monocoque wheels from Bike Ahead, due to the non-existent tensile load of conventional spokes, they can design the construction in such a way that the rim is very light and the rotating masses are in the center of the wheel.
The next (A)ERA for your bike has begun!
100% MADE IN GERMANY
Perfect craftsmanship guarantees a grandiose product. With the Made in Germany label, Bike Ahead Composites is committed to manufacturing all products carefully, cleanly and fairly.
All production steps take place in-house, from the idea to the series product. This means that the entire production process and quality can be monitored at all times in order to be able to manufacture safe products. In accordance with the philosophy of "functional lightweight construction", the guys from Bike Ahead know every one of their products down to the smallest carbon fiber.
Technical specifications:
intended use : road bike, triathlon
Wheel size: 28"
ETRTO: 20-622
Rim type: for clincher and folding tires
Brake type: Disc only
Material rims: carbon
Inner width: 20 mm
Outer Width: 25mm
Rim Height: 48.5mm
Offset: -
Number of holes: -
Spokes: 6x carbon monocoque
Lacing pattern: -
Hubs: DT Swiss 180 EXP with SINC ceramic bearings
Brake disc mount: Center Lock
axle type front: 12x100 mm thru axle
axle type rear: 12x142 mm thru axle
Front bearing : 2x industrial bearings, SINC Ceramic
bearing : 4x industrial bearings, SINC Ceramic
Freewheel Compatibility: SRAM XDR
Freewheel Type: Toothed Washers, 36 Teeth
recommended tire width: 32 mm
max. air pressure at 23 mm: 8bar (116psi)
max. air pressure at 28 mm: 7bar (108psi)
max. air pressure at 32 mm: 6bar (87psi)
maximum driver weight: 95 kg (driver, clothing and possibly luggage)
tubeless capable: yes
Valve hole: Presta valve (SV, 6.5mm)
Rim color / finish: UD carbon matt
Color decals: white (removable)
Color hubs: black
Weight according to the manufacturer: 1450g

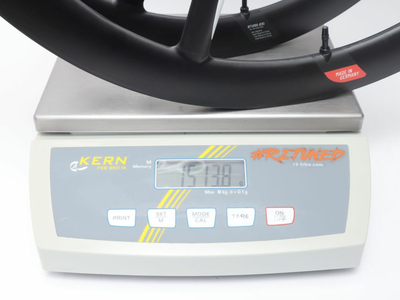

Weight weighed: 1513.8g (incl. valves and tubeless tape)
Scope of delivery:
1x BIKE AHEAD COMPOSITES wheelset 28" Biturbo AERO | SRAM XDR Center Lock
1x wheel bag
