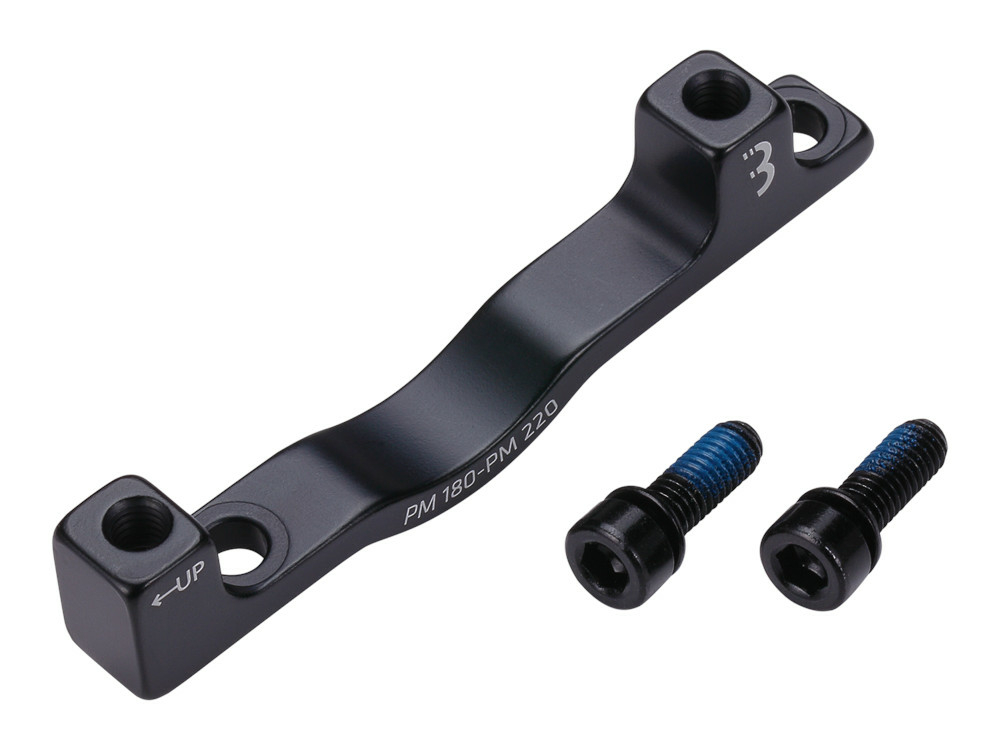

BBB CYCLING Adapter PowerMount PM-PM BBS-99 +17 | black
This adapter allows you to drive 220 mm brake discs on forks or rear structures with post mount brake calipers. Please make sure that your frame and fork are approved for the use of 220 mm brake discs.
The adapter extends the standard brake disc size of the fork or rear triangle by 17 mm. Please check your fork or rear triangle which post mount variant is installed. Based on the standard brake disc size, the adapter increases the brake disc size by the specified number in millimeters.
PM5 = 140mm standard size
PM6 = 160mm standard size
PM7 = 180mm standard size
PM8 = 200/203mm standard size
Technical specifications:
Material adapter: aluminum
Material screws: steel
Extension in front: +17 mm
Rear extension: +17 mm
mount Fork: Post Mount PM
mount triangle mount: Post Mount PM
Mount mount : Post Mount
Color: Black
Weight according to the manufacturer: kA
Weight weighed: 11.4g
Scope of delivery: 1x adapter BBB CYCLING adapter PowerMount PM-PM BBS-99 +17 | black
