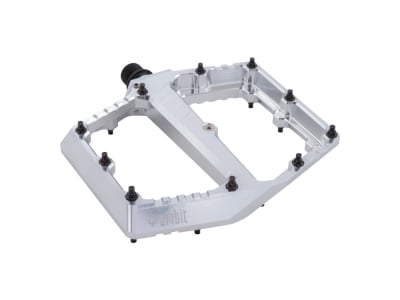

AMBIT COMPONENTS Pedals Breach Small | silver
Ambit Components - at home in the mountains
The innovation base of the still young brand is located in the tranquil town of Oberammergau in the Bavarian Alps. This is where experience and creativity come together to create new technical developments with a clear design that are fully dedicated to mountain biking. The entire team actively rides mountain bikes themselves and incorporates their passion for the sport directly into the development of the products in order to generate the ultimate riding pleasure. The trails and the Oberammergau bike park are just around the corner, perfect conditions for putting the prototypes through their paces under all conditions.
Breach - innovative engineering from Germany
These pedals were developed in Oberammergau and all of their features are based on the popular Haxn Hoita. Development at Ambit always takes place in close cooperation with the team riders and also incorporates feedback from end customers. This is why the Breach pedal is now available in three different sizes. The size S has a contact area of 91 mm 78 mm and is therefore particularly aimed at children or riders with very small feet. The striking look gives the pedal a certain recognition value. But the real highlight is inside the pedal - the rotation brake. This allows the rotational movement of the pedal body to be continuously adjusted. A feature that has received very little attention to date. However, the rotation speed plays a very important role, especially in slopestyle or freeride. After all, everyone wants to be able to place their feet safely back on the pedals after a trick. By adjusting the rotation brake, the pedal body cannot continue to rotate during jumps in the air.
Another feature of the pedal is the slanted standing surface, which ensures the best possible application of force without fatigue and guarantees an ergonomic riding experience. This noticeably increases endurance and riding comfort thanks to the optimized hip, knee and foot alignment.
It goes without saying that the engineers at Ambit Components have put a lot of thought into servicing the pedal. Thanks to the patented "Service Screw" system, maintenance is quick and easy. Only three screws need to be opened to dismantle the pedal and service the axles. Servicing has never been so easy.
Technical data:
Area of application: slopestyle, all-mountain, enduro, freeride, downhill
Body material: 6061 T6 aluminum
Axle material: Steel (CrMo)
Pin material: Steel
Height: 18 mm (axle, without pins), 14 mm (outside, without pins), pin height 5 mm
Pedal body dimensions: 91 x 78 mm (in size S)
Number of pins: 20 pins per pedal
Bearings: 1x IGUS plain bearing 12 x 15 mm, 2x industrial bearings
Seal: 3 mm felt ring, INA shaft seal 3 x 12 mm
max. rider weight: n. A.
Compatibility Shoe size: n/a A.
Finish: shiny
Color: silver
Weight according to manufacturer: 346g (size S, including pins)
Weight self-weighed: 345g (size S, including pins)
Scope of delivery:
1x AMBIT COMPONENTS pedals Breach Small | silver
