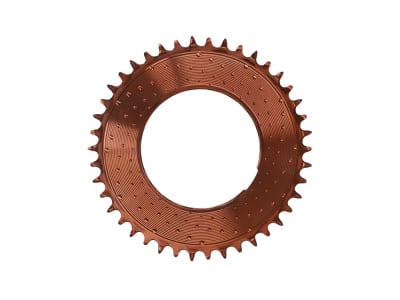

ALUGEAR chainring round AERO Direct Mount | 1-speed Narrow Wide SRAM Thread Mount for RED XPLR Powermeter Spider | mocha
Alugear, a company based in the beautiful city of Krakow, 250 km southwest of Warsaw, specializes in the development and production of drive components for bicycles. The entire production cycle - from the initial design to the finished product - is carried out entirely in Poland, guaranteeing consistently high product quality with minimal manufacturing tolerances.
With a clear focus on maximum compatibility, Alugear has developed universal tooth profiles for its chainrings that work smoothly with all common 11-speed and 12-speed chains. In addition, the chainrings can now also be used with SRAM transmission drivetrains and RED XPLR 13-speed drivetrains.
Narrow Wide
To keep the chain securely in position even without a chain guide, the teeth have a special profile consisting of alternating narrow and wide teeth that are precisely matched to the inner and outer dimensions of the chain links. In muddy conditions, chainrings with a narrow-wide tooth profile are also characterized by excellent self-cleaning properties. Dirt and mud are automatically removed when the chain overruns, which significantly reduces friction in the drivetrain and increases efficiency.
Thread mount
The thread-mount attachment of the chainring not only saves weight, the large-area connection with the crank spider also maximizes stiffness and increases measurement accuracy in combination with the SRAM RED XPLR AXS Powermeter Spider.
technical data:
Area of application: Gravel, Road
Material: Aluminum 7075-T6
Technology: Narrow Wide, Direct Mount
Bolt circle: -
Mounting: SRAM Direct Mount | Thread Mount for RED XPLR AXS Powermeter Spider
Number of teeth: 38 teeth, 40 teeth, 42 teeth, 44 teeth, 46 teeth 48 teeth, 50 teeth, 52 teeth or 54 teeth
Compatibility cranks: SRAM DUB Wide Gravel and DUB Road cranks with 8-hole standard, Alugear Vega Al cranks
Chain compatibility: 9-, 10- and 11-speed chains, 12-speed SRAM Eagle, Transmission, 12-, 13-speed Flattop, KMC and Shimano HG+ chains
Mounting position: -
Chainline: 47.5 mm with SRAM DUB Wide Gravel cranks; 45 mm with SRAM DUB Road cranks
Offset: 6.5 mm
Adjustment options: none
Range (ovalization): -
Timing (power application): -
Finish: glossy
Color: mocha
Weight according to manufacturer: 85g (38 teeth), 96g (40 teeth), 109g (42 teeth), 121g (44 teeth), 128g (46 teeth), 138g (48 teeth), 163g (52 teeth), 170g (54 teeth)
Weight even weighed: 112g (42 teeth)
Scope of delivery: 1x ALUGEAR chainring round AERO Direct Mount | 1-speed Narrow Wide SRAM Thread Mount for RED XPLR Powermeter Spider | mocha
