Description

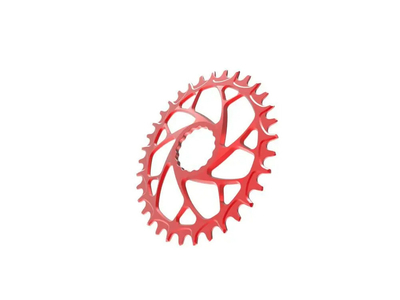

ALUGEAR chainring oval direct mount | 1-way narrow-wide Race Face Cinch | BOOST
The Alugear company is based in the beautiful city of Krakow, approx. 250 km southwest of the Polish capital Warsaw. The focus is on the development and manufacture of drive components for bicycles. B. Ahead caps on offer.
The entire production cycle from the first draft to the finished product is completely realized by Alugear in Poland. Only in this way is it possible to guarantee constant product quality with low manufacturing tolerances.
narrow-wide tooth profile
In order to keep the chain securely in position even without a chain guide, the teeth have a special profile of narrow and wide teeth alternating. The teeth are also shaped in such a way that the chainring itself transports the mud away very well in muddy conditions. So dirt and mud are effectively removed when the chain overflows and friction in the drive train is minimized.
Direct mount assembly
The chainring is mounted directly on the crank arm and replaces the possible previous spider. The result is a tidy look that saves weight and at the same time offers excellent rigidity.
oval shape
The ovalization of the chainring increases the performance by varying the drive train and optimizing the resistance. When kicking with the legs, the natural strengths and weaknesses are brought into harmony. In this way, better use of the stronger muscle groups is achieved and a balance is created in the weaker muscles on the way to work (lower stroke).
Technical specifications:
intended use : MTB
Material: aluminum 7075-T6
Technology: Narrow Wide, Direct Mount
bolt circle diameter : -
Attachment: Race Face Cinch Direct Mount
Number of teeth: 26, 28, 30, 32, 34, 36 or 38 teeth
Compatibility cranks : Race Face Cinch
Compatibility chain: 10-speed , 11-speed or 12-speed (SRAM Eagle & Shimano)
Mounting position: -
chain line : 26/28 teeth 51,3mm, 52,5mm teeth 30/32, 34/36 53,3mm teeth, 38 teeth 54mm
Offset: 26/28 teeth 3.7mm, 30/32 teeth 2.5mm, 34/36 teeth 1.7mm, 38 teeth 1mm
Adjustment options: none
Range (ovalization): 26, 28, 30, 32 teeth 10%, 34, 36, 38 teeth 12%
Timing (force introduction): 108 ° after TDC (top dead center).

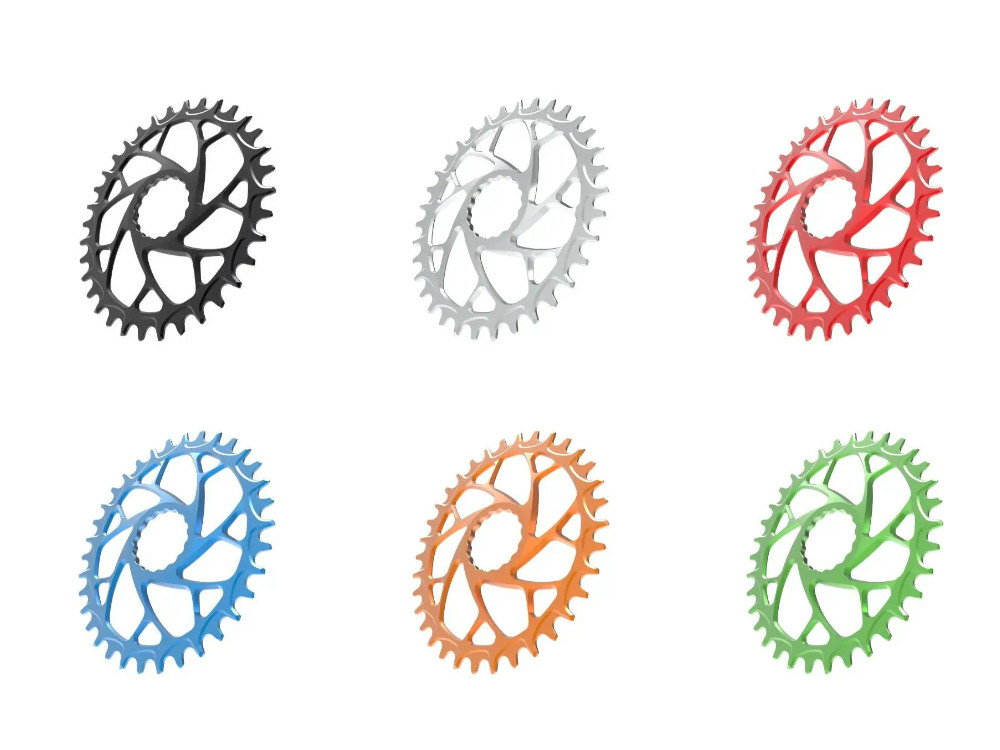

Color: black, red, blue, green, orange or silver
Weight according to the manufacturer:

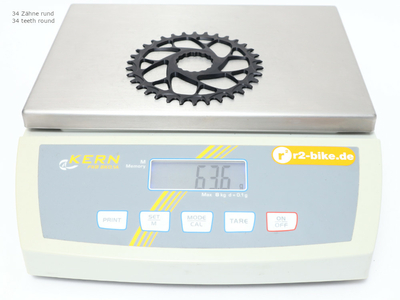

Weight weighed: 63.6g (34 teeth / round)
Scope of delivery: 1x ALUGEAR chainring oval Direct Mount | 1-way narrow-wide Race Face Cinch | BOOST
