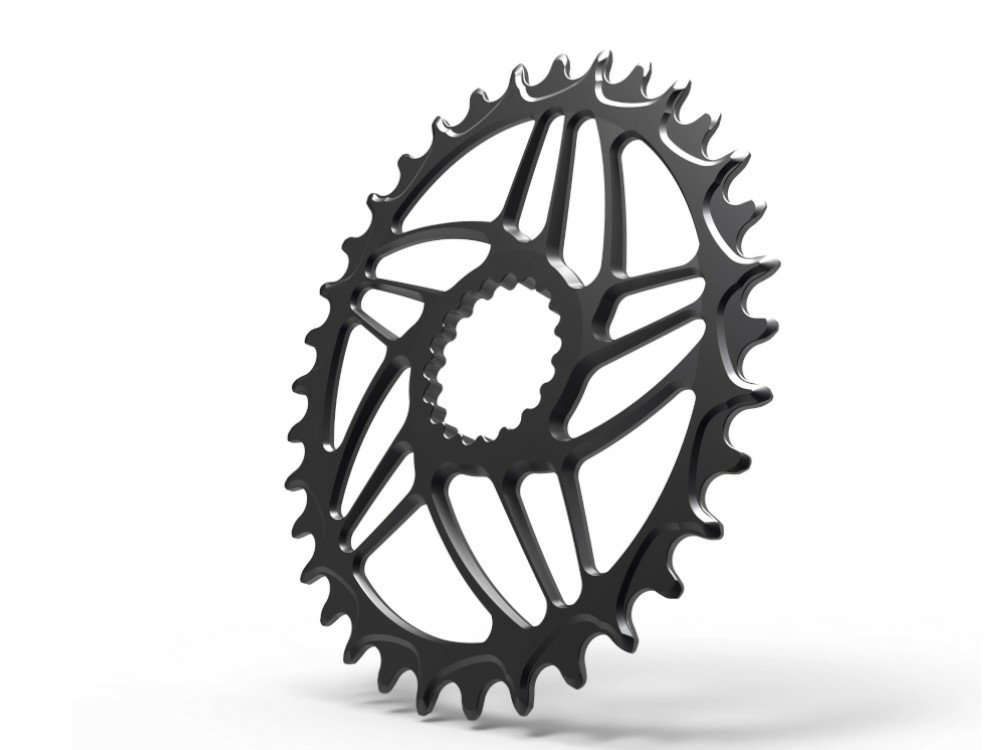

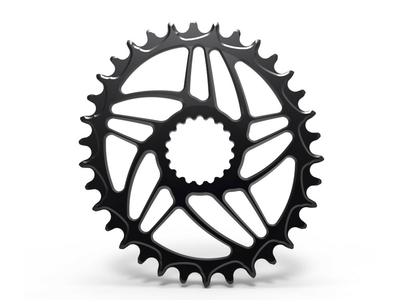

ALUGEAR chainring oval Direct Mount | 1-speed narrow-wide Cannondale Hollowgram Ai MTB | BOOST
Alugear is based in the beautiful city of Krakow, approx. 250 km southwest of the Polish capital Warsaw. The focus is on the development and production of drive components for bicycles, but the range of products also includes, for example, Ahead caps.
The entire production cycle, from the initial design to the finished product, is carried out entirely by Alugear in Poland. This is the only way to guarantee consistent product quality with low manufacturing tolerances.
narrow-wide tooth profile
To keep the chain securely in position even without a chain guide, the teeth have a special profile consisting of alternating narrow and wide teeth. The teeth are also shaped in such a way that the chainring is very good at removing mud itself in muddy conditions. Dirt and mud are therefore effectively removed when the chain runs over and friction in the drivetrain is minimized.
Direct mount assembly
The chainring is mounted directly on the crank arm and replaces the possible previous spider. The result is a tidy look that saves weight and offers excellent stiffness at the same time.
Oval shape
The ovalization of the chainring increases performance by varying the drivetrain and optimizing resistance. When pedaling with the legs, the natural strengths and weaknesses are harmonized. This results in better use of the stronger muscle groups and compensates for the weaker muscles in the work stroke (shorter stroke).
Technical data
Area of application: MTB
Material: Aluminum 7075-T6
Technology: Narrow Wide, Direct Mount
Bolt circle: -
Mounting: Cannondale Direct Mount
Number of teeth: 26, 28, 30, 32, 34, 36 or 38 teeth
Compatibility cranks: Cannondale Hollowgram
Chain compatibility: 10-speed, 11-speed or 12-speed (SRAM Eagle & Shimano)
Mounting position: -
Chainline: depending on the crankshaft used
Offset: 3 mm
Adjustment options: none
Range (ovalization): 12%
Timing (force application): 108° after TDC (top dead center).
Color: black, red, blue, green, orange or silver
Weight according to manufacturer: 26T-42g, 28T- 46g, 30T- 48g, 32T- 57g, 34T- 62g, 36T- 69g, 38T- 72g
Weight self-weighed: n.a.
Scope of delivery: 1x ALUGEAR chainring oval Aero Direct Mount | 1-speed narrow-wide Cannondale Hollowgram Ai MTB | BOOST
