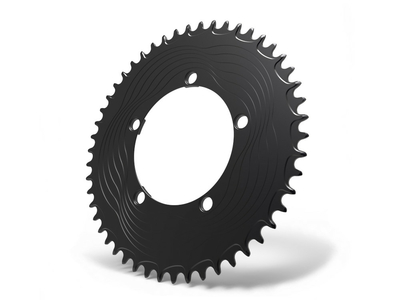

ALUGEAR chainring oval Aero 1-speed | LK 110 mm 5 hole narrow-wide
Alugear is based in the beautiful city of Krakow, approx. 250 km south-west of the Polish capital Warsaw. The focus is on the development and production of drive components for bicycles, but the range of products also includes, for example, Ahead caps.
The entire production cycle, from the initial design to the finished product, is carried out entirely by Alugear in Poland. This is the only way to guarantee consistent product quality with low manufacturing tolerances. The aero design not only looks good, it also ensures less air turbulence in the crank area.
narrow-wide tooth profile
To keep the chain securely in position even without a chain guide, the teeth have a special profile consisting of alternating narrow and wide teeth. The teeth are also shaped in such a way that the chainring is very good at removing mud itself in muddy conditions. Dirt and mud are thus effectively removed when the chain runs over and friction in the drivetrain is minimized.
oval shape
The ovalization of the chainring increases performance by varying the drivetrain and optimizing resistance. When pedaling with the legs, the natural strengths and weaknesses are harmonized. This achieves better use of the stronger muscle groups and compensates for the weaker muscles in the work stroke (shorter stroke).
Technical data:
Area of application: Road/CX/Gravel
Material: Aluminum 7075-T6
Technology: Narrow Wide
Bolt circle: 110 mm
Mounting: 5-arm spider
Number of teeth: 36, 38, 40, 42, 44, 46, 48, 50, 52 or 54 teeth
Compatibility cranks: cranks with 5-hole 110 mm
Chain compatibility: 10-speed, 11-speed or 12-speed Shimano & SRAM, SRAM Transmission
Mounting position: -
Chainline: depending on the crank used
Offset: n/a
Adjustment options: none
Range (ovalization): 12%
Timing (force application): 108° after TDC (top dead center)
Colour: black, red, blue, green, orange or silver
Weight according to manufacturer: n/aA.
Weighed weight: n.a.
Scope of delivery: 1x ALUGEAR chainring oval Aero 1-speed | LK 110 mm 5 hole narrow-wide
