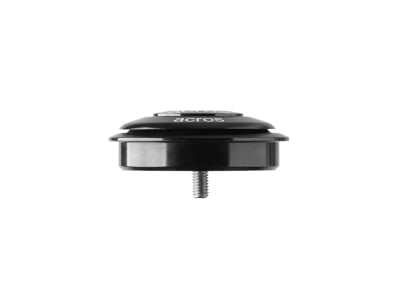

ACROS headset upper part | OD62 | ZS56/28.6 1 1/8"
From the tranquil town of Renningen, in the green state of Baden Württemberg, straight to your bike! Behind Acros is a group of passionate cyclists and engineers. Their motto: ride more, worry less.
In typical Acros fashion, this headset upper part also uses a high-quality double-sealed stainless steel angular contact ball bearing, which is filled with optimized headset grease. The two sealing washers with double lip seal keep the grease safely inside the bearing and protect it from moisture and dirt. It is a ZS version (Zero Stack - semi-integrated) with a press-fit dimension Ø of 56 mm and an outer diameter (OD) of 62 mm. The bearing is completed with an aluminum cover cap and matching Acros Ahead cap with claw.
Technical data:
Material: Stainless steel, aluminum, plastic
Type: ZS (Zero Stack - semi-integrated)
Fork steerer: 1 1/8" (top)
S.H.I.S.: ZS56/28.6
Press-in dimension Ø: 56 mm
offset: 7.7 mm
Bearing seat: 45°
Outer diameter: 62 mm
Overall height: 8 mm
Bearing: Stainless steel angular contact ball bearing, double sealed
Color: black
Weight according to manufacturer: 56g
Weight self-weighed: 75g
Scope of delivery:
1x ACROS headset upper part | OD62 | ZS56/28.6 1 1/8" (incl. centering ring, metal-reinforced seal)
1x headset cover flat
1x Ahead cap incl. countersunk bolt and claw
1x headset grease 5g
1x instructions and product information
