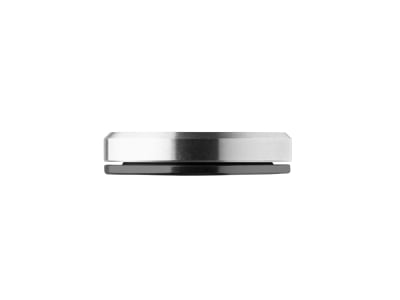

ACROS headset lower part | IS42/30 11/8"
From the tranquil town of Renningen, in the green state of Baden Württemberg, straight to your bike! Behind Acros is a group of passionate cyclists and engineers. Their motto: ride more, worry less.
Typical for Acros, this headset lower part also uses a high-quality double-sealed stainless steel angular contact ball bearing, which is filled with optimized headset grease. The two sealing washers with double lip seal keep the grease safely inside the bearing and protect it from moisture and dirt. This is an IS version (Integrated System) with an outer diameter of 42 mm. The bearing is completed with a flat and a high fork cone, so depending on what your frame needs, you can easily adapt it. All this guarantees a long service life despite minimal maintenance.
Technical data
Material: Stainless steel, aluminum
Type: IS (integrated)
Steerer tube: 11/8" (bottom)
S.H.I.S.: IS42/30
Press-in dimension Ø: 42 mm
Bottom offset: 6.45 mm
Bottom bearing seat: n.a.
Outer diameter bottom: 42 mm
Overall height: 0 - 4.55 mm
Bearing: Stainless steel - angular contact ball bearing, double sealed
Color: silver
Weight according to manufacturer: 22g
Weight when weighed: 33g
Scope of delivery:
1x headset lower part | IS42/30 11/8"
1x fork cone flat
1x fork cone high
